Ziton ZP7 Addressable Weatherproof Manual Call Point (ZP888R)
Product Details for Ziton ZP7 Addressable Weatherproof Manual Call Point (ZP888R)

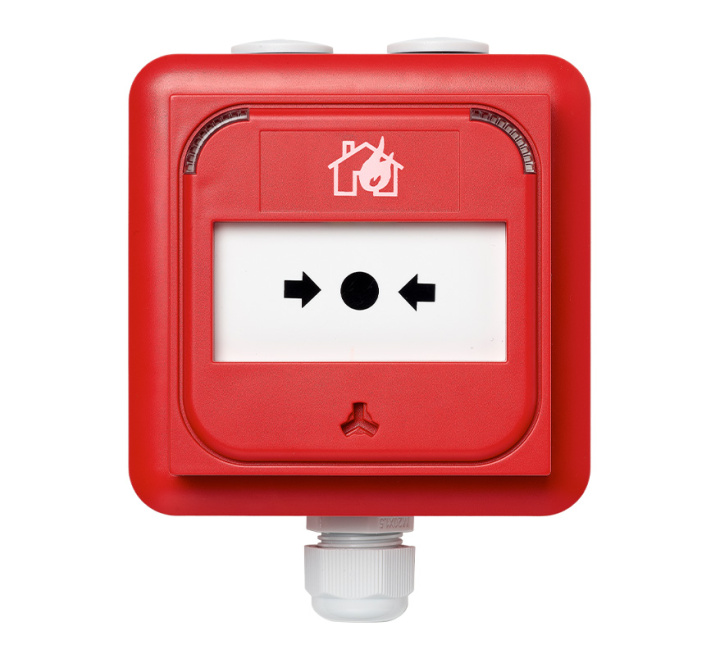

The Ziton ZP888R is an intelligent addressable red weatherproof manual call point. It is delivered complete with resettable element, test connector and test key. Multiple optional accessories are available to facilitate most outdoor installation requirements.
This weatherproof single action MCP is a standard profile, outdoor MCP suitable for surface mount installations using the back box supplied with the product. With its designer dual, tricolour LEDs it offers 180°, clear local indication of its operational status, even from a side view. The clean face of the MCP is further enhanced by a front access & test key facility that allows access to the activation element that can be either frangible or resettable.
Compatibility
The ZP880 range may be used on compatible Ziton fire systems. They can be deployed seamlessly into existing legacy systems without CIE configuration changes.
Installation and maintenance friendly
The front facing access for an aesthetically matching test key allows unhindered access regardless of the installation location. The MCP key doubles as a test and disassembly tool allowing removal of the MCP front cover without the need for additional tools.
Key Features of the ZP888R |
|---|
|
> Reliable single action manual call point for surface mounting
> A dual, tri-colour status indicator offers 180° alarm visibility > Tamper resistant design with resettable or frangible element > Unobtrusive front facing test facility > Outdoor rated, waterproof enclosure > Back box with top and bottom cable entry > Screen connection terminal for electrically noisy installations > Pluggable connector with link through facility for ease of installation and pre-commissioning testing > Alarm flag on the face of the MCP allows maintenance indication even without alarm indicators > Fast, no-tools-required maintenance using the test key > Up to 127 devices per loop |
| Brand | Ziton |
|---|---|
| Manufacturer Part No. | ZP888R |
| Primary Power Source | 24V DC |
| System Type | Addressable |
| Protocol Compatibility | Ziton |
| Warranty | 10 Years |
FAQ’s for Ziton ZP7 Addressable Weatherproof Manual Call Point (ZP888R)
Product Specification for Ziton ZP7 Addressable Weatherproof Manual Call Point (ZP888R)
| Code: | ZP888R |
| Description: | Ziton ZP7 Series intelligent addressable manual call point, weatherproof |
| Compatible products: | N-MC-FC: MCP accessory, intelligent Manual Call Point flip cover N-MC-FE: MCP accessory, intelligent manual call point frangible element |
| Dimensions: | W:108mm x H:108mm x D:69mm |
| Status indication: | Dual LEDs, Alarm (red constant), Isolated (yellow constant), Fault (yellow blinking), Communication (green blinking) |
| User interface: | LEDs, Alarm flag |
| Compatibility: | Ziton ZP7 systems |
| Event log: | 32 events |
| Connectivity: | 2-wire loop |
| Material (body): | Flame retardant ABS |
| Functional marking: | House on fire |
| Compatibility: | Ziton ZP7 systems |
| Addressing method: | DIP switches |
| Operating voltage: | 16 to 20 VDC |
| Current consumption: | 250 µA (quiescent) 280 µA ( alarm) |
| Cable specification: | 0.404 to 2.05 mm (0.13 to 3.31 mm²) |
| No. of cable cores: | 2 |
| Terminals: | 4 (A+/A-;B+/B-) |
| Detection: | Push button/switch |
| Monitoring: | Activated, Fault, Off |
| Response time: | <3s |
| Installation height: | Determined by local regulation |
| Vandal proof: | No |
| Operating temperature: | -25 to +72°C |
| Storage temperature: | -20 to +70°C |
| Relative humidity: | 10 to 95% non-condensing |
| IP rating: | IP67, indoor, outdoor |
| Mounting: | Back box, Wall mount |
| Cable entries: | 1 x threaded MK20 (top or bottom), 2 x threaded MK20 (bottom or top) |
| Colour: | Red (RAL 3028) |
| Regulatory: | CE, REACH, RoHS 3, WEEE compliant CPR certified EN54-11 standard Voluntary marks: A+ |
| Weight: | 267g |
