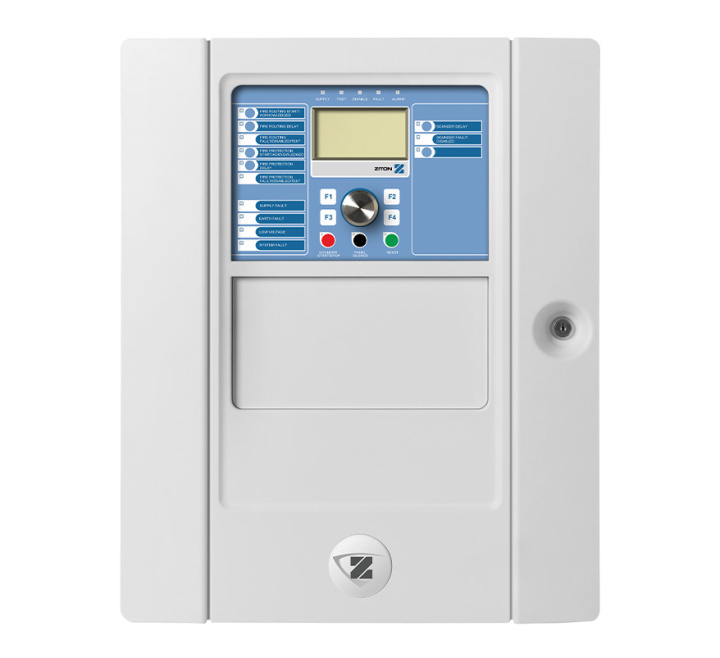

Ziton ZP2 Repeater panel + Fire Brigade controls - Large Cabinet
SKU
ZP2-FR-FB2-99
£794.22 £661.85
Ziton Addressable Fire Panel Repeater with Fire Brigade controls (ZP2-FR-FB2-99)
The Ziton ZP2-FR-FB2-99 Fire Panel Repeater, with user interface and fire brigade / fire protection controls comes with a 2010-2-NB network board already fitted. Except for having no addressable loops and corresponding programmable outputs, the setup is similar to a normal fire panel. It has its own power supply, 2 conventional relay outputs and 2 supervised outputs, working in pairs and dedicated to common fire and fault conditions. 2 user configurable inputs for monitoring and control are also available.
| Key Features |
|---|
| > Local or global repeater with Fire Brigade and Fire Protection controls with or without global control functionality > Up to 40 LED Zone indicators for Fire and Fault with ample text space > Auto configuration, setup wizards and default EN54 setup modes > Ethernet port with TCP/IP for remote diagnostics, maintenance and programming > EN54 compliant graphical LCD with icons and up to 256 zones > Jog Dial with 4 soft buttons for simple and intuitive user control > Pleasing design with special paintable synthetic door > Easy removable door and chassis for quick and clean installation > All pluggable connectors > 3 USB ports with memory stick support and RS232 for printer support > Email notification for events directly from the panel (4 user accounts) > Auxiliary 24VDC supply output with reset support > 3 operator level menu structure (20 usernames and passwords) > History log memory for 9999 events > Up to 72 hours standby time and 30 minutes alarm > Comes standard fitted with network board |
| Manufacturer | Ziton |
|---|---|
| MPN | ZP2-FR-FB2-99 |
Write Your Own Review
Sort By:
No questions yet. Be the first to ask the question!
| Code: | ZP2-FR-FB2-99 |
| Description: | Ziton Addressable Fire Panel Repeater with Fire Brigade controls |
| Dimensions: | W:450mm x H:550mm x D:172mm |
| Form factor: | Large |
| Operating voltage: | 110 /230 VAC (+10%/-15%) |
| Current consumption: | Nom. 0.6 / 1.3 A, Max. 1.5 / 3.15 A |
| Network size (nodes): | up to 64 |
| Mains frequency: | 50 / 60 Hz (±5%) |
| Fuse rating: | 2 / 4 A |
| Cable type: | 3 x 1.5 mm² (live, neutral, earth) |
| OUTPUTS | |
| General Fire + Fault supervised: | 2, 350mA / 19.5-28VDC (24 VDC nominal) |
| General Fire + Fault relay: | 2 |
| Aux: | 1 resettable, 500mA / 19.5-28VDC (24VDC nominal) |
| Cable type: | Recommended 2 core 1.5 mm² twisted pair |
| End of line resistor: | 15kohm |
| INPUTS | |
| Programmable: | 2 |
| Cable type: | Recommended 2 core 1.5 mm² twisted pair |
| End of line resistor: | 15kohm |
| Max. load: | 150 mA |
| Standby battery capacity: | Max. 2 x 12 V / 18 Ah (use supplied cables) |
| Mounting type: | Surface |
| Operating temperature: | -5 to +40°C |
| Storage temperature: | -10 to +50°C |
| Relative humidity: | 95% max. non condensing |
| IP rating: | IP30, indoor use only |
| Colour: | Grey (RAL7035) |
| Cable entries: | 18 (20mm) / 2 (20mm) / 2 removable plates (Top/Bottom/Back) |
| Regulatory: | BS5839-1, CPD, LPCB, NBNS21-100, NEN2535, RoHS, WEEE compliant EN54-2, EN54-21, EN54-4, VdS certified |
| Weight: | 10.1kg (7.4kg without battery) |
