Kidde Digital Alarm Communicator Transmitter (2010-2-DACT)
Product Details for Kidde Digital Alarm Communicator Transmitter (2010-2-DACT)

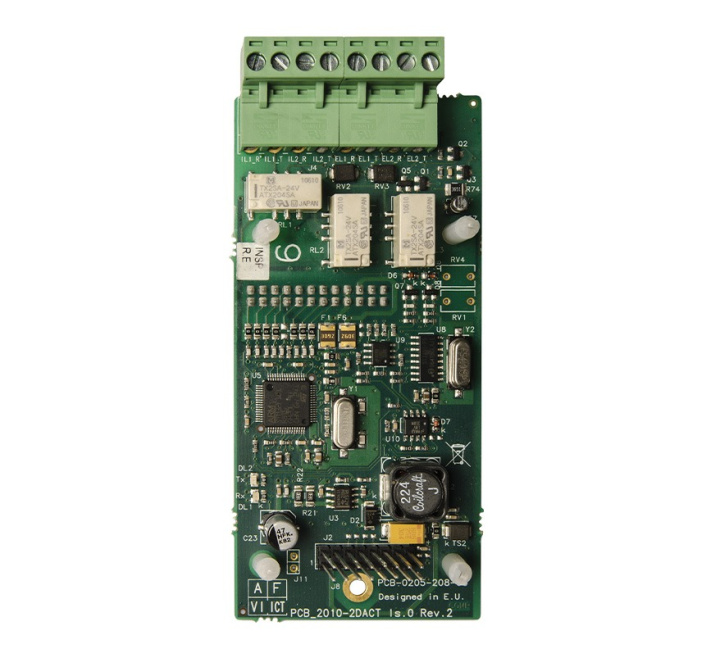

The 2010-2-DACT, Digital Alarm Communicator Transmitter (DACT) is an accessory of the small to medium size intelligent addressable life safety control systems.
Mounting and connections
The board can be plugged directly on the front of the main board inside the small and big size control panel variants on top of the new release 3 chassis. No additional wiring is required. You can use the pluggable connectors to make your connections to the PSTN lines.
Functionality
The DACT provides communications between a compatible control panel and a central monitoring station (CMS) over the public switched telephone network (PSTN). The DACT uses the Contact ID (CID) protocol and is capable of single, dual, or split reporting of events to up to six configurable central monitoring stations. An optional GPRS board (the ATS7310) can be installed onto the DACT to provide mobile network communications.
Key Features of the 2010-2-DACT |
|---|
|
> Communication over PSTN
> Optional GPRS communication > Single, dual, or split reporting > Up to 6 Control Monitoring Stations > EN54-21 certified (both PSTN & GPRS) > Pluggable connectors > Small, W:105mm x H:52mm |
| Brand | Kidde Commercial |
|---|---|
| Manufacturer Part No. | 2010-2-DACT |
| Primary Power Source | 24V DC |
| Warranty | 2 Years |
FAQ’s for Kidde Digital Alarm Communicator Transmitter (2010-2-DACT)
Product Specification for Kidde Digital Alarm Communicator Transmitter (2010-2-DACT)
| Code: | 2010-2-DACT |
| Description: | Ziton Addressable fire panel accessory, Digital Alarm Communicator Transmitter |
| Dimensions: | W:105mm x H:52mm |
| Form factor: | Small |
| Status indication: |
1 green LED (transmission Tx) 1 green LED (receive Rx) |
| Compatibility: | Release 3 hardware / firmware, Osborne-Hoffman OH2000E, Sur-Gard SG System I |
| Operating voltage: | 24 VDC |
| Current consumption: | 45 mA at 24 VDC (standby/activated) 100 mA max. (With GPRS board) |
| Comms protocol: | Contact ID |
| Cable type: | 2-wire telephone cable with RJ-11 jack (or regional equivalent) |
| Mounting: | In cabinet |
| Operating temperature: | -5°C to 40°C |
| Storage temperature: | -20 to 50°C |
| Relative humidity: | 10 to 95% non-condensing max. |
| Regulatory: | CPD, RoHS, WEEE compliant EN54-13, EN54-2, EN54-21 certified |
| Weight: | 130g (40g net ) |
