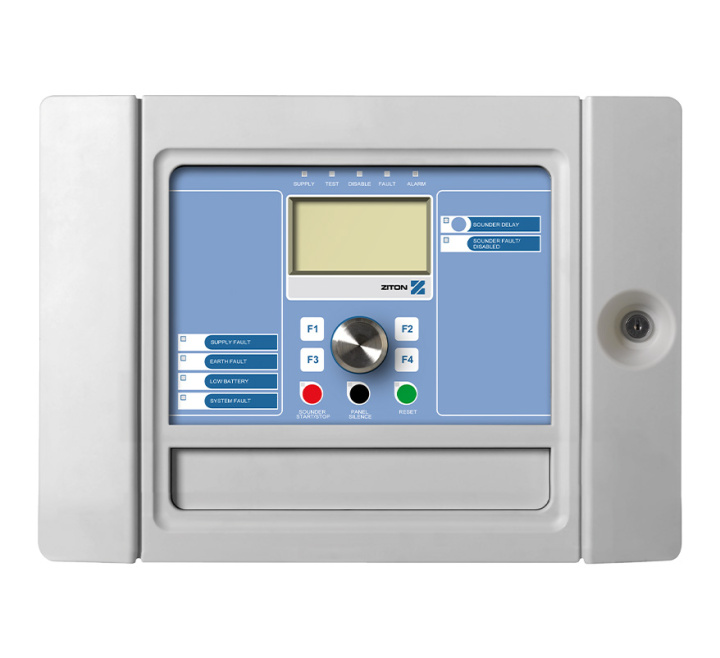

Ziton ZP2 Addressable Fire Panel - 2 Loop, small cabinet
SKU
ZP2-F2-S-99
£669.79 £558.16
Ziton Addressable Fire Panel - 2 Loop, small cabinet (ZP2-F2-S-99)
The Ziton ZP2-F2-S-99 is a small, 2-loop Addressable Fire Panel, with user interface, that supports up to 254 devices each (127 addresses) in 512 zones. It has 4 supervised sounder/fire-routing outputs which can also be used as freely programmable outputs. 2 conventional relay outputs and 2 supervised outputs work in pairs and are dedicated to common fire and fault conditions, as well as 2 user configurable inputs for monitoring and control.
| Key Features |
|---|
| > 2 loops with up to 512 zones and 300 output groups > Up to 24 LED Zone indicators for Fire and Fault with space for a 4 digit number > Auto configuration and default EN54 setup modes > Ethernet port with TCP/IP for remote maintenance and programming > EN54 compliant graphical LCD with icons and symbols for easy recognition of events > Jog Dial with 4 soft buttons for simple and intuitive user control > Pleasing design with special paintable synthetic door > Easy removable door and chassis for quick and clean installation > All pluggable connectors > 3 USB ports with memory stick support and RS232 for printer support > Email notification for events directly from the panel (4 user accounts) > Auxiliary 24VDC supply output with reset support > 3 operator level menu structure (20 user names and passwords) > History log memory for 9999 events > Compatible with the Ziton loop powered sounders/beacons and base sounders and Ziton series detectors |
| Manufacturer | Ziton |
|---|---|
| MPN | ZP2-F2-S-99 |
Write Your Own Review
Sort By:
No questions yet. Be the first to ask the question!
| Code: | ZP2-F2-S-99 |
| Description: | Ziton Addressable Fire Panel - 2 Loop, small cabinet |
| Dimensions: | W:410mm x H:298mm x D:162mm |
| Form factor: | Small |
| Operating voltage: | 110 / 230 VAC (+10%/-15%) 60 / 50 Hz (±5%) |
| Current consumption: | Nom. 0.6 / 1.3 A, Max. 1.5 / 3.15 A |
| Loop capacity (max.): | 2 |
| Loop outputs: | 2, 300 mA@11 VDC (peak 500 mA@20 V) |
| Loop cable length: | max 75 ohms / 700 nF (max 2 km with 2 mm² and 127 detectors) |
| Loop cable type: | Recommended 2 core 1.5 mm² twisted pair |
| Network size (nodes): | up to 64 |
| Max. system capacity: | up to 16256 devices |
| Max. zone capacity: | up to 512 |
| INPUT | |
| Programmable: | 2 |
| Termination: | 15 kohm |
| Cable type: | Recommended 2 core 1.5 mm² twisted pair |
| Maximum Load: | 150 mA |
| OUTPUT | |
| Termination: | 15 kohm |
| Programmable supervised: | 4, 750 mA / 19.5 to 28 VDC (24 VDC nominal) |
| General Fire + Fault supervised: | 2, 350 mA / 19.5 to 28 VDC (24 VDC nominal) |
| General Fire + Fault relay: | 2 |
| Aux: | 1 resettable, 500 mA / 19.5 to 28 VDC (24 VDC nominal) |
| Cable type: | Recommended 2 core 1.5 mm² twisted pair |
| Standby battery capacity: | Max. 2 x 12V/7.2Ah (use supplied cables) |
| Mains fuse rating: | 2 / 4 A |
| Mains cable type: | 3 x 1.5 mm² (live, neutral, earth) |
| Mounting type: | Surface |
| Operating temperature: | -5 to +40°C |
| Storage temperature: | -10 to +50°C |
| Relative humidity: | 95% max. non condensing |
| IP rating: | IP30, indoor use only |
| Colour: | Grey (RAL7035) |
| Cable entries: | 9 (20mm) / 2 (20mm) / 2 removable plates (Top/Bottom/Back) |
| Regulatory: | BS5839-1, CPD, LPCB, NBNS21-100, NEN2535, RoHS, WEEE compliant EN54-13, EN54-2, EN54-21, EN54-4, VdS certified |
| Weight: | 6.6kg (5.2kg without battery) |
