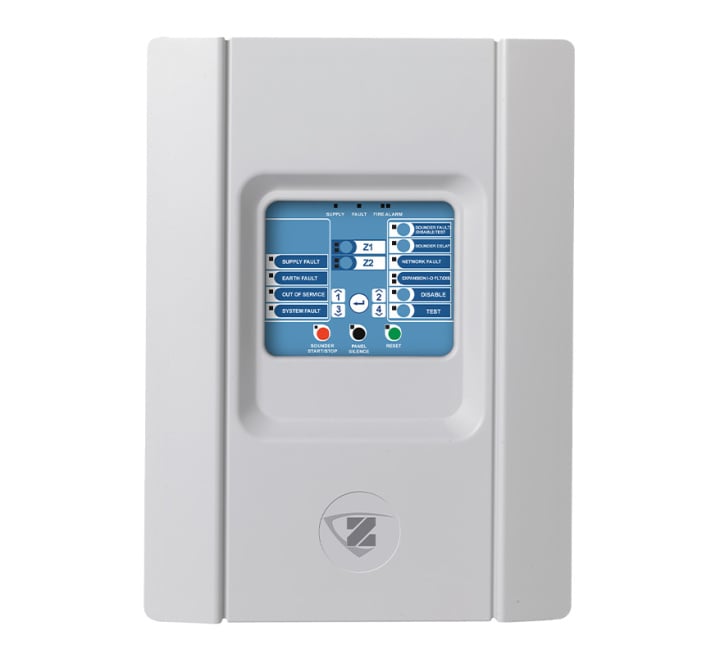

Ziton ZP1 2 Zone Conventional Fire Control Panel (ZP1-F2-03)
Discontinued
Alternative Products
Product Details for Ziton ZP1 2 Zone Conventional Fire Control Panel (ZP1-F2-03)
The Ziton ZP1-F2-03 is a conventional fire alarm control panel. It is supplied in local language with 2 zones that support up to 32 devices per zone, as well as up to 2 supervised relay outputs dedicated to sounder control. In addition 2 conventional relay outputs dedicated to common fire and fault conditions, as well as two user configurable inputs for monitoring and control are available.
The panel supports 2 types of auxiliary relay boards, one with 4 standard relays, and one with 4 supervised relays. With these boards the panel outputs may be expanded with up to 8 additional outputs.
Ziton ZP1 fire control panels offer state-of-the-art architecture in configurations that deliver an uncomplicated solution for small to mid-sized conventional applications. They feature an attractive contemporary design that fits with any decor. The gently curved door front offers a distinctive flair. Operator controls are inset in a striking blue lexan.
With support for multiple lines of conventional detectors and accessories, these quick-to-configure systems offer versatility that benefits building owners and installation/maintenance companies alike.
Key Features of the ZP1-F2-03 |
|---|
|
> Modern, elegant design
> Easy removable parts for quick and clean installation > Default regional setup modes > Normal, head-out & intrinsically safe zone support > Supervised alarm notification outputs > EN54 compliant potential free fire & fault relays > Class change, day/night & remote reset facilities > Auxiliary 24VDC supply output with reset support > Default support for special functions such as: - EN54 compliant user access levels - mixed zones - full front panel diagnostics - one-man walk test > Auxiliary standard & supervised relay output boards > Networkable up to 64 zones |
| Brand | Ziton |
|---|---|
| Manufacturer Part No. | ZP1-F2-03 |
| Product Series | Ziton ZP1 |
| Primary Power Source | Mains Powered (230V) |
| System Type | Conventional |
| Number of Zones | 2 |
| Warranty | 2 Years |
FAQ’s for Ziton ZP1 2 Zone Conventional Fire Control Panel (ZP1-F2-03)
Product Specification for Ziton ZP1 2 Zone Conventional Fire Control Panel (ZP1-F2-03)
| Code: | ZP1-F2-03 |
| Description: | Ziton Conventional Fire Panel - 2 Zone |
| Dimensions: | W:320mm x H:435mm x D:134mm |
| Form factor: | Small |
| Max. system capacity (devices): |
up to 2048 |
| Network size: |
up to 32 nodes |
| Operating voltage: |
110 VAC @ 50 Hz or 230 VAC @ 50 Hz (+10% -15%) |
| Current consumption: |
2 A @ 110/240 VAC |
| Max. loop capacity: | 2 |
| Standby battery: | 2 x 12V - 7.2 Ah (SLA) |
| Zone: |
Max. capacity: up to 2 Quantity of devices per zone: 32 max. |
| Input supply: | Cable spec: 3 x 1.5 mm² (live, neutral, earth) |
| Panel supply: | 2A @ 24 VDC Quiescent current (no devices): 50 mA Alarm current (no devices): 130 mA |
| Zones: | 2 Output voltage: 22 VDC (18-24 VDC) Load (max): 65 mA Cable resistance (max): 40 ohm Cable capacitance (max): 500 nF Devices per zone (max): 32 |
| Inputs: | 2 Cable resistance (max): 100 ohm |
| Supervised outputs: | 2 Output voltage: -15 to +28 VDC Load (max): 250 mA |
| Non-supervised outputs: | 2 Load: 2 A @ 30 VDC |
| Aux. supply output: | Output voltage: 24 VDC (21 to 28 VDC) Load (max): 250 mA @ 25°C / 195 mA @ 40°C |
| Operating temperature: | -5 to +50°C |
| Storage temperature: | -20 to +70°C |
| Relative humidity: | 10 to 95% non-condensing |
| IP rating: | IP30, indoor |
| Colour: | Grey (RAL7035) |
| Cable entries: | Ø 20 mm - 14 / 2 / 12 (Top/Bottom/Rear) |
| Mounting: |
Surface |
| Regulatory: | CPD, RoHS, WEEE compliant EN54-13, EN54-2, EN54-4 certified |
| Weight: | 4.5 kg (2.8 kg without battery) |
