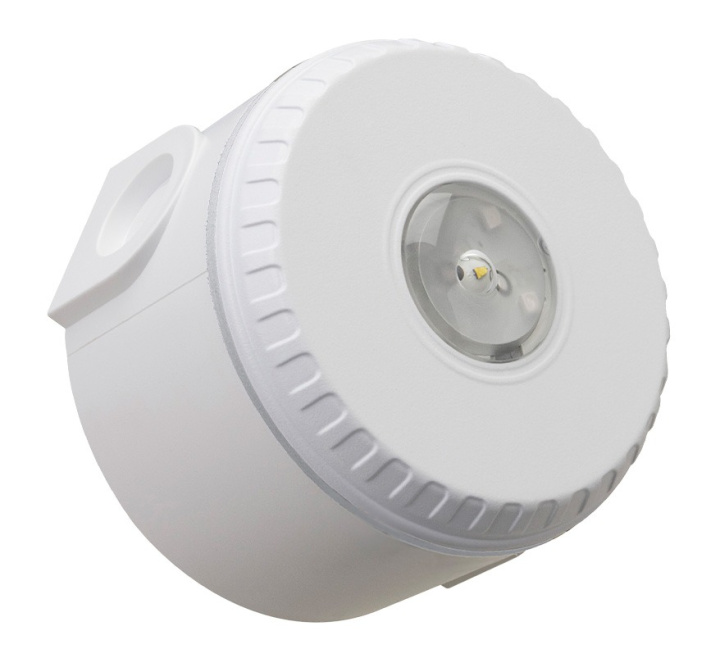

Ziton ZP Addressable Ceiling mount VAD C-3-7.5
SKU
ZPC760W
£108.17 £90.14
Ziton ZP Addressable Ceiling mount VAD C-3-7.5
The Ziton ZPC760W is a ZP7 series, addressable white visual alarm device (VAD), approved to EN54:23 for ceiling mount applications. It features a clear lens with red LED element and incorporates a switch setting allowing it to be assigned a unique address on a Ziton fire panel loop.
Designed for installation at a height of up to 3m and with a discrete appearance, the ZPC760W with its deep base is suitable for a variety of applications. Its unique lens design distributes light evenly to achieve the required illumination, whist using minimum current.
Designed to complement audible alarms, the ZPC760W provides a high intensity, synchronised visual signal for applications where alarm sounders alone are ineffective for notification or evacuation of a premises. In areas with high levels of background noise and manufacturing areas where intense industrial noise demands the use of ear protection, residential areas or other confined spaces such as bedrooms, bathrooms and toilets, or places with occupants who may be hard of hearing, the use of visual indication alarms is ideal.
The ZPC760W is designed to meet the requirements of most local disability legislation and is certified as a primary alarm notification device under EN54:23.
Depending on the system requirements, the ZPC760W may be set to use less power. When coverage areas are small (less than 7.5 m radius), reducing the required range minimises the system current load. In addition, the flash frequency may be set to 0.5 Hz (1 flash every 2 seconds) instead of 1 Hz (1 flash every second) in instances where power consumption needs to be further reduced.
Install using the first-fix base supplied with the unit. Loop and/or power cables for the VAD are connected in this base. In systems where loop lengths or current requirements are high, the ZPC766W may be powered directly from an external, EN54:4 approved power supply. The external supply is supervised and, should there be a problem, the VAD automatically notifies the fire panel.
| Key Features |
|---|
| > White body, red flash > Ceiling mount > Compatible with Ziton addressable fire panels > Connection layout with easy wiring and connection on installation > Powered directly from the ZP loop for small installations, or externally when many units are required > Fully addressable > LED technology for long service life and low current consumption, maximising the number of devices on a loop > Unique optics for light management with a lens design that optimises light dispersal, minimising power wastage > Up to 7.5m coverage diameter > Coverage switch feature - for smaller areas switch down from 7.5m to 3m, reducing power consumption and saving up to 50% > Flash rate switch feature, reducing the power consumption by up to 50% > Soft start up for reduced current peak at start up, reducing circuit loading > Locking base to prevent easy removal of device > EN54-23 approved and CPR certified |
| Manufacturer | Ziton |
|---|---|
| MPN | ZPC760W |
Write Your Own Review
Sort By:
No questions yet. Be the first to ask the question!
| Code: | ZPC760W |
| Description: | Ziton Ceiling mount VAD (white body, red flash) |
| Dimensions: | Dia:93mm x H:65mm |
| Operating voltage: | 15.5 to 20.5 V (loop powered, pulsed) 18 to 28 VDC (externally powered) |
| Current consumption (max) from loop: | Loop powered - Quiescent - Active (LP / HP): 1Hz 740µA 34 / 70mA Loop powered - Quiescent - Active (LP / HP): 0.5 Hz 740µA 22 / 38mA Externally powered- Quiescent- Active (LP / HP): 600μA, 6 mA |
| Current consumption (max) from AUX PSU: | Flash Frequency - Quiescent - Active (LP / HP): 1Hz 180µA 20 / 40mA Flash Frequency - Quiescent - Active (LP / HP): 0.5 Hz 180µA 12 / 24mA |
| Visual Indicator: | Red LED, 0.5 or 1 Hz 30 or 60 flashes/min |
| Operating temperature: | -10 to +55°C |
| Storage temperature: | -25 to +70°C |
| Relative humidity: | 95% max. non-condensing |
| IP rating: | IP65, indoor, Type A |
| Devices per loop (max): | <25 (1km loop of 1.5mm² cable and depending on loop configuration, device setting and power selection) |
| Wiring: | 2 core loop |
| Monitoring: | Open/short circuit, removal, device type, external power |
| Addressing method: | 7 way CIT (1 of 127 addresses) |
| Mounting: | Ceiling |
| Colour: | Gloss white / clear lens |
| Material: | ABS FR / (Lens - polycarbonate) |
| Monitoring: | Open/short circuit, removal, device type, external power |
| Regulatory: | EN54-23 (C-3-7.5) certified |
| Weight: | 175g |
