AirSense Addressable Panel Interface Card (APIC) (Ziton Protocol) (9-30437)
Product Details for AirSense Addressable Panel Interface Card (APIC) (Ziton Protocol) (9-30437)

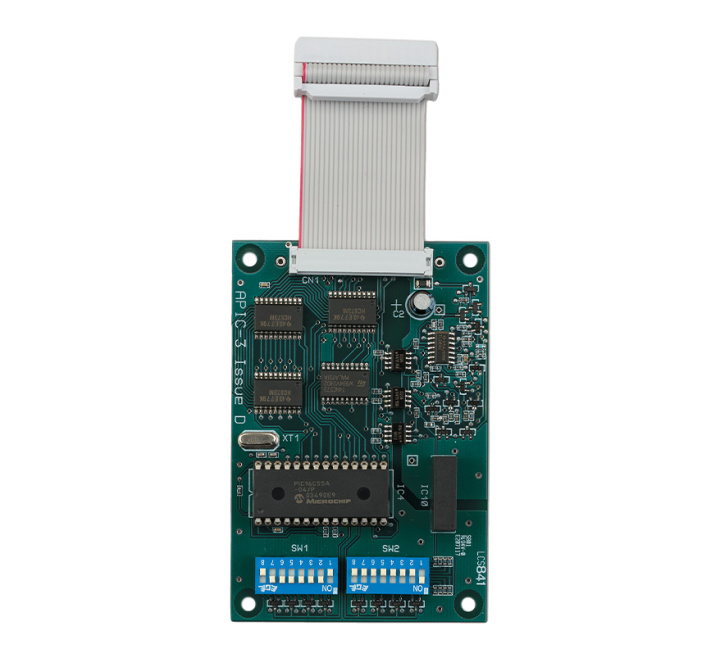

The AirSense 9-30437 is an interface card which can be attached directly to the main control board of any LaserSense aspirating detector. The card plugs into the main control board inside the detector enclosure. The board enables the detector to be directly addressed and communicate with the Ziton ZP3 main control panel.
Plug-in terminals
Detectors are wired onto the loop using plug-in terminals located on the LaserSense detector main control board. The detector and interface are easily addressed by switch settings prominently positioned on the card.
Advanced alarm indication
The interface is recognised by the main control panel as device type HSSD and depending upon the analogue signals received and control panel software installed, will provide the following alarm conditions – Fault, Alert, Pre-alarm, and Fire. (Alert not displayed on ZP3 panel).
For ZP control panels operating on software prior to version 3.07 confirmation of available signals should be obtained from Ziton technical department.
Up to 127 sensing devices can be connected to each of the control panel loops.
Key Features of the 9-30437 |
|---|
|
> Simple LaserSense addressing onto ZP loop
> Ribbon cable connection – no hard wiring > Piggy backs onto detector main board > Ease of address setting |
| Brand | AirSense |
|---|---|
| Manufacturer Part No. | 9-30437 |
| Primary Power Source | 24V DC |
| System Type | Addressable |
| Protocol Compatibility | Ziton |
| Warranty | 2 Years |
FAQ’s for AirSense Addressable Panel Interface Card (APIC) (Ziton Protocol) (9-30437)
Product Specification for AirSense Addressable Panel Interface Card (APIC) (Ziton Protocol) (9-30437)
| Code: | 9-30437 |
| Description: | AirSense LaserSense Addressable Panel Interface Card (APIC) – Ziton protocol |
| Model No: | ZP-LSI-1 |
| Dimensions: | PCB 100 x 70 (H x W) |
| Compatibility: |
ZP3 control panels |
| Mounting: | Ribbon cable with plug and socket - fixes to allotted space on panel main board. (by 3 M4 x 18mm stand off spacers) |
| Operating temperature: | -10 to +60°C |
| Relative humidity: | 0 - 90% non-condensing |
| Environment: | Indoor |
| Weight: | 50g |
