SKU
71501N
£2,237.64 £1,864.70

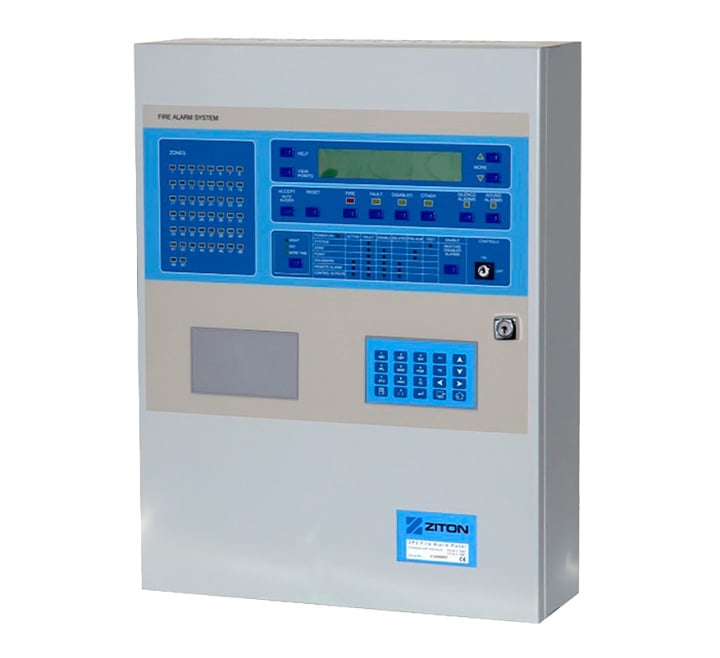

Ziton 71501N ZP3 Series, ZP3-4L, 4-loop analogue control panel, English (71501N)
The Ziton 71501N Control Panel’s high sensitivity smoke and fire sensing enables it to identify and disregard conditions that might result in false or unwanted alarms. Up to 127 line devices (detectors, call points, sounders or interface units) may be connected to each of the ZP3 loops. For sites requiring more loops, panels may be networked together to form systems capable of controlling more than 30,000 devices from as much as 64 control panels.
Key Features |
---|
> CPR Certified to EN54:2 and 4 > Advanced sensing techniques > Extensive networking ability > Loop powered sounders support > Ease of operation > Service and near service facility > Sophisticated alarm verification > Automatic self test > Day / night control > Radio loop interface support > Automatic contamination adjustment for each detector > Intelligent loop isolation > Self test sounder support > Password protection > Event log > Loop monitoring - Open/short circuit, earth fault, device removal, wrong device type |
Manufacturer | Ziton |
---|---|
MPN | 71501N |
Write Your Own Review
Sort By:
No questions yet. Be the first to ask the question!
Code: | 71501N |
Description: | Ziton 4 loop analogue control panel, 230V, EN54 approved N |
Dimensions: | W:410mm x H:540mm x D:137mm |
Communication ports: | Z-Port 1 Planner, RS232 Z-Port 2 Network, RS485 / fibre optic, USB port |
Max. system capacity: | up to 130k (device count) |
Network size (nodes): | up to 256 |
Power consumption: | Power Supply Input 230 VAC 50 Hz ±10%, 0.75 Amps or 24-50 VDC |
Current consumption: | Quiescent (4 loops with 0 devices) 420mA @ 24 VDC Alarm (4 loops with 25% zones in alarm) 820mA @ 24 VDC |
Max. loop capacity: | 4 |
No. of devices per loop: | 127 |
Cable rating: | 2 core screened (to local codes & standards) |
Max. zone capacity: | up to 508 |
Fire alarm signalling: | 1 x volt free N/O or N/C |
Fault signalling: | 1 x volt free N/O or N/C |
Notification: | Sounder circuits 2 x dual (monitored & programmable) |
Standby battery, capacity: | up to 28 |
Batteries supported in housing: | 2 x 12 V SLA |
Operating temperature: | −5°C to +40°C |
Relative humidity: | 10 to 90% non condensing |
IP Rating: | IP30 : indoor use only |
Material: | Sheet steel |
Colour: | Grey (Pantone 428c) |
Mounting type: | Recessed mount, Surface mount |
Weight: | 11 kg |
