Kidde 19" Rack Mounting Kit for Small Cabinet Panels (2010-2T-19-S)
SKU
2010-2T-19-S
£155.88
£129.90
Kidde 19" Rack Mounting Kit for Small Cabinet Panels (2010-2T-19-S)
Available to Order
This item is not currently in stock at our main warehouse, but it is available to backorder or may be sent directly from the manufacturer. Contact us for lead time.
Product Details for Kidde 19" Rack Mounting Kit for Small Cabinet Panels (2010-2T-19-S)

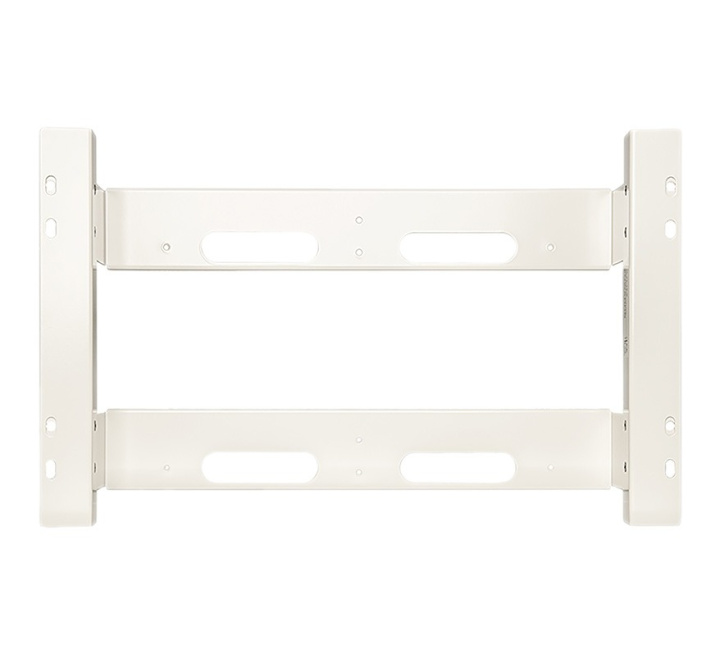

The Kidde 2010-2T-19-S Rack Mount kit allows you to install a small (W:400 × H:282 × D:102 mm) addressable control panel into a standard 19-inch rack.
The kit is supplied with flat head, countersunk screws for easy installation. You’ll also need 8 additional screws. Use screws specified as compatible by the rack vendor. The mounting screws must support up to 25 kg.
7U rack units (U) required to complete the installation. One rack unit (1U) is equal to 1.75 in. (44.45 mm)
Key Features of the 2010-2T-19-S |
|---|
|
> Allows for the installation of a small (W:400 × H:282 × D:102 mm) addressable control panel into a standard 19-inch rack
> 7 rack units required (1 rack unit = 1.75”, 44.45mm) > Kit is supplied with flat head, countersunk screws for easy Installation > 8 additional screws required (specified as compatible by the rack vendor) |
| Brand | Kidde Commercial |
|---|---|
| Manufacturer Part No. | 2010-2T-19-S |
| Warranty | 2 Years |
Write Your Own Review
FAQ’s for Kidde 19" Rack Mounting Kit for Small Cabinet Panels (2010-2T-19-S)
No questions yet. Be the first to ask the question!
Product Specification for Kidde 19" Rack Mounting Kit for Small Cabinet Panels (2010-2T-19-S)
| Code: | 2010-2T-19-S |
| Description: | Kidde Rack Mount Kit, 19”, Addressable fire panel accessory, small cabinet |
| Dimensions: | W:365mm x H:160mm x D:525mm |
| Form factor: |
Small |
| Mounting: |
In cabinet |
| Rack units required: | 7U |
| Colour: | White RAL 9010 |
| Material: | Steel |
| Regulatory: | CE, RoHS, WEEE compliant EN54-13, EN54-2 certified |
| Weight: | 2.944 kg (net 1.665kg) |
