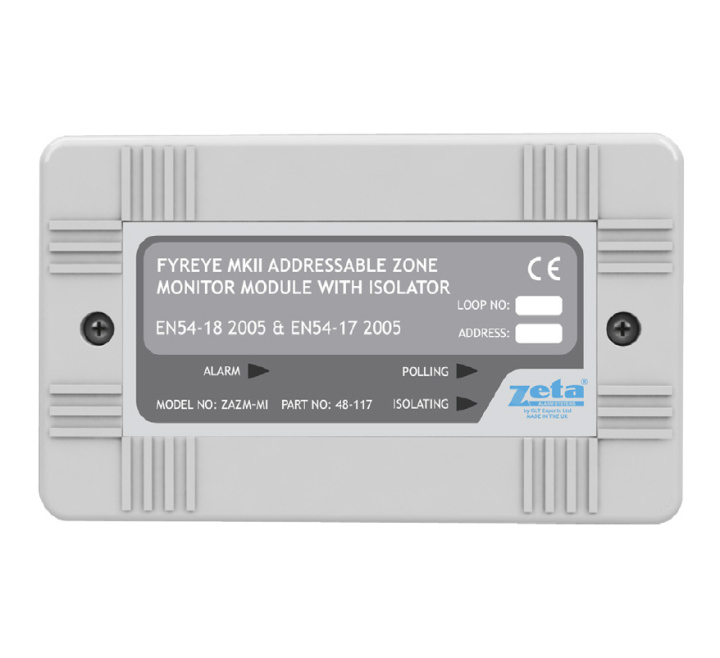

Zeta Fyreye MKII Addressable Zone Monitoring Unit with Isolator (ZAZM-MI)
SKU
ZAZM-MI
£56.99
£47.49
Zeta Fyreye MKII Addressable Zone Monitoring Unit with Isolator (ZAZM-MI)
- Buy 10 for £55.24 £46.03 each and save 3%
- Buy 20 for £54.36 £45.30 each and save 5%
Available to Order
This item is not currently in stock at our main warehouse, but it is available to backorder or may be sent directly from the manufacturer. Contact us for lead time.
Product Details for Zeta Fyreye MKII Addressable Zone Monitoring Unit with Isolator (ZAZM-MI)
The Zeta ZAZM-MI is an addressable zone monitoring unit that can be used for a zone of conventional devices and/or for special detectors that are not available in addressable form such as UV detectors, aspirating detectors etc.
The ZAZM-MI is supplied in a modern enclosure (2 gang box size) with well protected electronic circuit board to minimize any damages during installation. It is supplied with a back box suitable for surface mount indoor installation. Designed and manufactured to meet the requirements of EN54-18 2005 and EN54-17 2005.
Key Features of the ZAZM-MI |
|---|
|
> This is a loop powered device, however loop load calculation must be performed to determine the permissible quantity of ZAZM-MI per loop
> Hand-addressed using the 8 way dip switch OR > Soft addressed using a handheld MKII Programmer (part no. 48-004) > Equipped with short circuit line isolator > Extensive front unit indications |
| Brand | Zeta |
|---|---|
| Manufacturer Part No. | ZAZM-MI |
| Product Series | Zeta Addressable |
| Primary Power Source | 24V DC |
| System Type | Addressable |
| Number of Zones | 1 |
| Protocol Compatibility | Zeta MKII |
| Colour | Grey |
| Warranty | 2 Years |
Write Your Own Review
FAQ’s for Zeta Fyreye MKII Addressable Zone Monitoring Unit with Isolator (ZAZM-MI)
No questions yet. Be the first to ask the question!
Product Specification for Zeta Fyreye MKII Addressable Zone Monitoring Unit with Isolator (ZAZM-MI)
| Product code: |
ZAZM-MI |
| Description: | Zeta Fyreye MKII Addressable Zone Monitor Module With Isolator (ZAZM-MI) |
| Dimensions: | 150mm x 90mm x 45mm |
| Operating voltage: |
17 - 28V DC |
| Quiescent current: |
3.5mA |
| Alarm current (LED OFF): |
12.6mA |
| Alarm current (LED ON): | 13.2mA |
| Isolating current: |
7.3mA |
| End of line resistor: |
6.2k |
| Nominal alarm triggering resistor: | 1k |
| Operating temperature: |
-10oC to +55oC |
| Max. humidity: |
95% RH non-condensing |
| IP rating: |
IP21C |
| Weight: | 220g |
