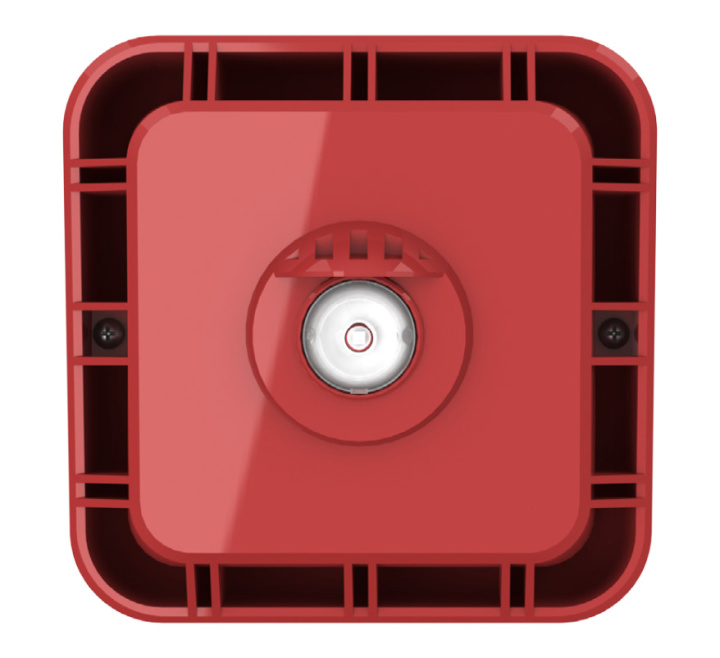

Zeta Xtratone MKII Addressable Wall Sounder VAD Beacon (Red) (MKII-AXTB/R)
SKU
MKII-AXTB/R
£60.74
£50.62
Zeta Xtratone MKII Addressable Wall Sounder VAD Beacon (Red) (MKII-AXTB/R)
- Buy 10 for £58.87 £49.06 each and save 3%
- Buy 20 for £57.95 £48.29 each and save 5%
Available to Order
This item is not currently in stock at our main warehouse, but it is available to backorder or may be sent directly from the manufacturer. Contact us for lead time.
Product Details for Zeta Xtratone MKII Addressable Wall Sounder VAD Beacon (Red) (MKII-AXTB/R)
The Zeta MKII-AXTB/R Xtratone Indoor Addressable Sounder / VAD Beacon is a red, compact unit with a high output (98.2dBdB @ 1m, Tone 0). The beacon has a coverage pattern of W-3.1 – 9.1 and the sounder has 16 tones, selectable at the control panel. “Electronics free” first fix.
Key Features of the MKII-AXTB/R |
|---|
|
> Red body, clear VAD beacon flash
> 100dB @ 1m sound output, 16 selectable tones (approved tones are 0 & 8) > Flash rates between 0.33Hz and 1.5Hz > Hard addressed via 8 way dip-switch OR > Soft addressed via MKII Handheld Programmer > Flush or surface fixing > Housed in UL V0 flame retardant ABS > 4 x 20mm cable entries (2 top, 2 bottom) > First fix, wire to back box technology |
| Brand | Zeta |
|---|---|
| Manufacturer Part No. | MKII-AXTB/R |
| Product Series | Zeta Addressable |
| Primary Power Source | 24V DC |
| System Type | Addressable |
| Protocol Compatibility | Zeta MKII |
| Colour | Red |
| Warranty | 2 Years |
Write Your Own Review
FAQ’s for Zeta Xtratone MKII Addressable Wall Sounder VAD Beacon (Red) (MKII-AXTB/R)
No questions yet. Be the first to ask the question!
Product Specification for Zeta Xtratone MKII Addressable Wall Sounder VAD Beacon (Red) (MKII-AXTB/R)
| Product code: |
MKII-AXTB/R |
| Description: | Zeta Xtratone Indoor Sounder/Beacon, Red |
| Dimensions: | W:105mm x H:105mm x D:56mm with back box: 105mm x 105mm x 89mm |
| Colour: | Red body, Clear flash |
| Operating voltage: |
17 - 28V DC |
| Quiescent current: |
1.5mA |
| Alarm current: |
18 to 43mA |
| Sound output: | 99.2dB (Tone 0) |
| IP rating: |
IP21C |
| Min. continuous operating temperature: | 0oC |
| Operating temperature: | -10 to +55oC |
| Humidity: | 95% (non-condensing) |
| Weight: | 210g |
