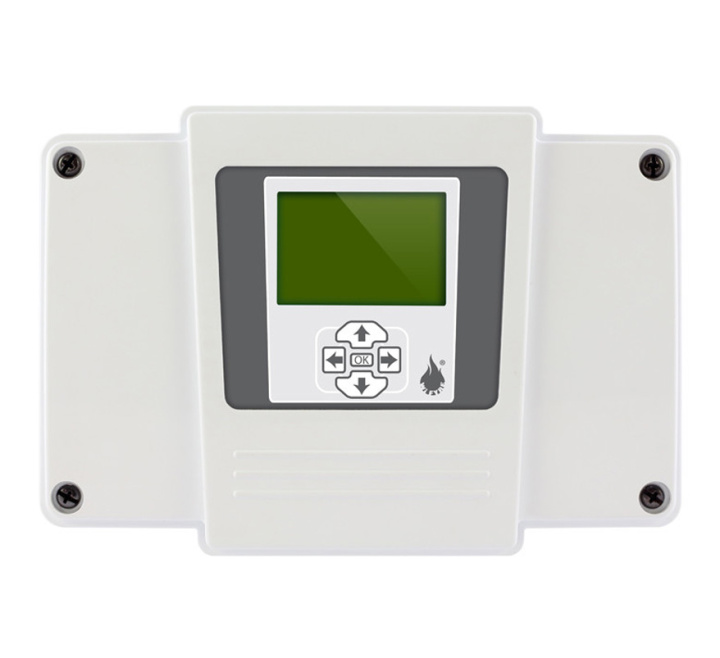

Zeta Wi-Fyre Universal Wireless Transponder with LCD Display (10-001)
Discontinued
Product Details for Zeta Wi-Fyre Universal Wireless Transponder with LCD Display (10-001)
The Zeta Wi-Fyre 10-001 Transponder communicates with Wi-Fyre wireless devices. Installed onto the Zeta loop/radial wiring, each unit can communicate with up to 30 mixed field devices such as smoke and heat detectors, manual call points, sounders, beacons and input/output devices.
Before installation, a wireless survey must be conducted using the Wi-Fyre Survey Head to ensure suitable signal quality between the installed device and its transponder.
An intuitive menu structure makes adding, removing or viewing the status of a wireless device a simple process. Wi-Fyre is compatible with both Zeta’s Fyreye MKI (standard protocol) and Fyreye MKII protocols.
The Wi-Fyre Transponder is small and easy to install. Commissioning is accomplished either using an inbuilt 5 button plus LCD panel front display, or via an optional Wi-Fyre PC interface card connected to a PC or laptop.
Key Features of the 10-001 |
|---|
|
> Small and easy to install
> Commission using inbuilt 5 button plus LCD panel front display, or via optional Wi-Fyre PC interface card connected to a PC / laptop > 868 – 870 MHz Operating Frequency > Up to 30 field devices per transponder > 5 modes of operation > Low operating current |
| Brand | Zeta |
|---|---|
| Manufacturer Part No. | 10-001 |
| Product Series | Wi-Fyre |
| Primary Power Source | 24V DC |
| System Type | Wireless |
| Protocol Compatibility | Zeta MKI, Zeta MKII |
| Colour | White |
| Warranty | 2 Years |
FAQ’s for Zeta Wi-Fyre Universal Wireless Transponder with LCD Display (10-001)
Product Specification for Zeta Wi-Fyre Universal Wireless Transponder with LCD Display (10-001)
| Product code: |
10-001 |
| Description: | Zeta Wi-Fyre Wireless Universal Transponder with LCD display & control |
| Size: | Outer: W:234mm x H:164mm x 75mm Mounting box recessing: W:228 x H:133 x 51mm |
| Operation frequency: |
868 - 870 MHz, 14dBm |
| Operating channels: | 28 |
| Field devices (max.): | 30 per interface |
| Range: | 150m open area |
| Power source: | Addressable Loop, Conventional Zone and/or Auxiliary |
| Display (optional): | LCD |
| Local control (optional): | 5 Tactile push-buttons or PC connection |
| Zone IN/OUT ratings: | 19 - 28Vdc, 400mA |
| Zone IN/OUT Internal Alarm Resistance: | Equivalent to 450 Ohm |
| Sounder IN/OUT ratings: | 8 - 24Vdc, 800mA max. |
| Auxiliary supply voltage: | 19 - 40 VDC max. |
| Manual alarm relay contact: | 1 x Solid-state normally open, 60Vdc, 600mA |
| Automatic Alarm Relay Contact: | 1 x Solid-state normally open, 60Vdc, 600mA |
| Common Fault Contact: | 1 x Solid-state normally closed (failsafe), 60V, 500mA |
| Cable terminals: | Rising clamp 1.5mm |
| Operating Current (nom.): | 12mA |
| Configuration interface: | Local and/or Wi-Fyre PC interface |
| Housing material / Colour: | Polycarbonate / White |
| Cable entries: | 6 x 20mm |
| Applicable standards: | EN54-25, BS 5839 Part 1:2002 ENTSI 300:220 |
| Operating temperature: | -10°C to 55°C |
| Humidity: |
10 to 95% RH Non-condensing |
| IP Rating: | IP54, for Indoor use only |
| Weight: | 620g |
