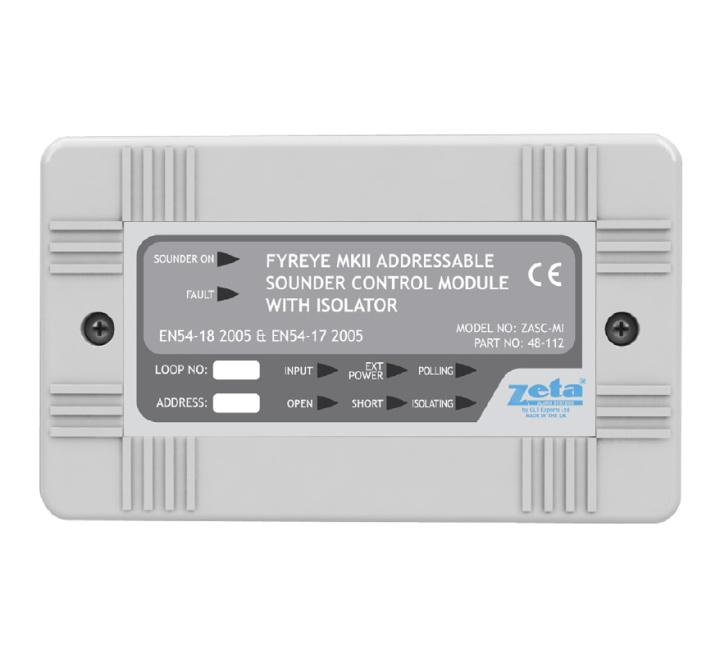

Zeta Fyreye MKII Addressable Sounder Control Module with Isolator (ZASC-MI)
SKU
ZASC-MI
£54.25
£45.21
Zeta Fyreye MKII Addressable Sounder Control Module with Isolator (ZASC-MI)
- Buy 10 for £52.58 £43.82 each and save 3%
- Buy 20 for £51.76 £43.13 each and save 5%
Available to Order
This item is not currently in stock at our main warehouse, but it is available to backorder or may be sent directly from the manufacturer. Contact us for lead time.
Product Details for Zeta Fyreye MKII Addressable Sounder Control Module with Isolator (ZASC-MI)
The Zeta ZASC-MI addressable sounder control module can be used to supply a monitored 24Vdc to operate external relays and as a conventional sounder circuit to run bells or beacon flashers where the current consumption prohibits the use of addressable loop-powered devices.
The unit also includes input connections to monitor the external power supply status and report the findings to the addressable control panel.
Supplied with a back box for surface mounting indoors. Meets EN54-18 2005 & EN54-17 2005.
NOT loop powered – an adequate 24VDC (with battery backup) is needed.
Key Features of the ZASC-MI |
|---|
|
> This is not a loop powered device and an adequate 24Vdc input (with battery backup) is needed
> Hand addressed using the 8 way dip switch OR > Soft addressed using a handheld MKII Programmer (part no. 48-004) > Equipped with short circuit line isolator |
| Brand | Zeta |
|---|---|
| Manufacturer Part No. | ZASC-MI |
| Product Series | Zeta Addressable |
| Primary Power Source | 24V DC |
| System Type | Addressable |
| Protocol Compatibility | Zeta MKII |
| Colour | Grey |
| Warranty | 2 Years |
Write Your Own Review
FAQ’s for Zeta Fyreye MKII Addressable Sounder Control Module with Isolator (ZASC-MI)
No questions yet. Be the first to ask the question!
Product Specification for Zeta Fyreye MKII Addressable Sounder Control Module with Isolator (ZASC-MI)
| Product code: |
ZASC-MI |
| Description: | Zeta Fyreye MKII Addressable Sounder Circuit Controller with S/C Isolator (Needs External Power Supply) |
| Dimensions: | 150mm x 90mm x 45mm |
| Operating voltage (loop): |
17 - 28V DC |
| Quiescent current (loop): |
0.6mA |
| Sounder on current (loop): | 0.8mA |
| Operating voltage (Ext. power): | 9-32 VDC |
| Quiescent current (Ext. @ 24V): | 2mA |
| Sounder on current (Ext. @ 9V): |
2.5mA plus sounder load |
| Sounder on current (Ext. @ 32V): | 9.5mA plus sounder load |
| Sounder output rating: |
500mA |
| Isolating current: |
7.3mA |
| Sounder end of line: |
10k |
| Operating temperature: |
-10oC to +55oC |
| Max. humidity: |
95% RH non-condensing |
| IP rating: |
IP21C |
| Weight: | 220g |
