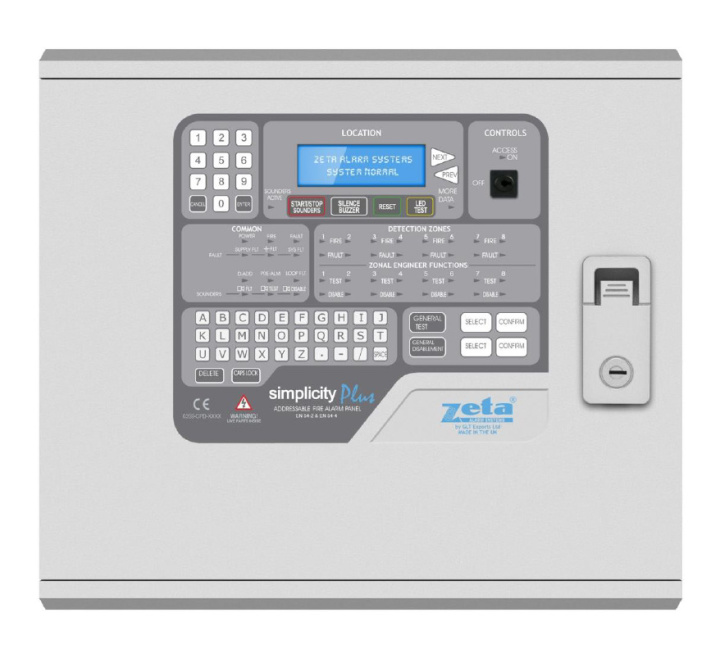

Zeta Simplicity Plus 2 Loop Addressable Fire Panel (252 Devices) (SP-252/M)
SKU
SP-252/M
£784.88
£654.07
Zeta Simplicity Plus 2 Loop Addressable Fire Panel (252 Devices) (SP-252/M)
Available on Backorder
This item is not currently in stock, but it is available to backorder. Contact us for lead time.
Product Details for Zeta Simplicity Plus 2 Loop Addressable Fire Panel (252 Devices) (SP-252/M)
The Zeta Simplicity Plus SP-252/M is a 2 loop addressable fire alarm control panel with a 252 device capacity (126 devices per loop).
As its name suggests, it has been designed with ease of use in mind, using pre-programmed values for its programming options. The installer simply needs to configure the loop and enter text labels via the built-in keypad (optional).
The Simplicity Plus panels have user-definable zones, options for zonal or common alarm operation, options for I/O operation, alarm verification and user-selectable languages.
It can be connected to an RS232 desktop printer for real-time event log printing (Epson LQ300+ recommended) and it can also drive a serial repeater model SP/REP (Part No. 37-179).
Key Features of the SP-252/M |
|---|
|
> 2 loop addressable fire alarm panel with 252 device capacity (126 devices per loop)
> 8 zones > Certified to EN54 parts 2 & 4 > User-definable zones > Option for zonal or common alarm operation > Options for I/O operation > Alarm verification (helps prevent false alarms) > User-selectable languages > Set of changeover relay contacts for fault condition > Set of changeover relay contacts for fire condition > 2,048 event log (fire & fault) > Zone or device disablement > One-man test mode > Plug & play > Fully integrated keypad > All associated devices are loop powered |
| Brand | Zeta |
|---|---|
| Manufacturer Part No. | SP-252/M |
| Product Series | Zeta Addressable |
| Primary Power Source | Mains Powered (230V) |
| System Type | Addressable |
| Number of Loops (Fitted) | 2 |
| Number of Zones | 8 |
| Protocol Compatibility | Zeta MKII |
| Colour | Grey |
| Warranty | 2 Years |
Write Your Own Review
FAQ’s for Zeta Simplicity Plus 2 Loop Addressable Fire Panel (252 Devices) (SP-252/M)
No questions yet. Be the first to ask the question!
Product Specification for Zeta Simplicity Plus 2 Loop Addressable Fire Panel (252 Devices) (SP-252/M)
| Product code: |
SP-252/M |
| Description: | Zeta Simplicity Plus 252 (2 loop, 252 devices) |
| Dimensions: | W:375mm x H:335mm x D:128mm |
| Supply voltage: |
230V AC +/- 10% |
| System voltage: |
24V DC (Nominal) |
| No. of loops: |
2 |
| Loop capacity: | 126 devices per loop (252 total) |
| No. of zones: | 8 |
| Sounder output: | Addressable sounders only |
| Fault output: | 28V Repeat Output to Drive Relay (Normally Energised) |
| Fire output: | 28V Repeat Output to Drive Relay |
| Operating temperature: | 0 to +50oC |
| Standard: | Certified to EN54 parts 2 & 4 |
| Weight: | 3.5kg |
