Zeta SmartConnect Multi-Loop Multi-Relay Output Module (SCM-RM)
SKU
SCM-RM
£160.38
£133.65
Zeta SmartConnect Multi-Loop Multi-Relay Output Module (SCM-RM)
Available on Backorder
This item is not currently in stock, but it is available to backorder. Contact us for lead time.
Product Details for Zeta SmartConnect Multi-Loop Multi-Relay Output Module (SCM-RM)

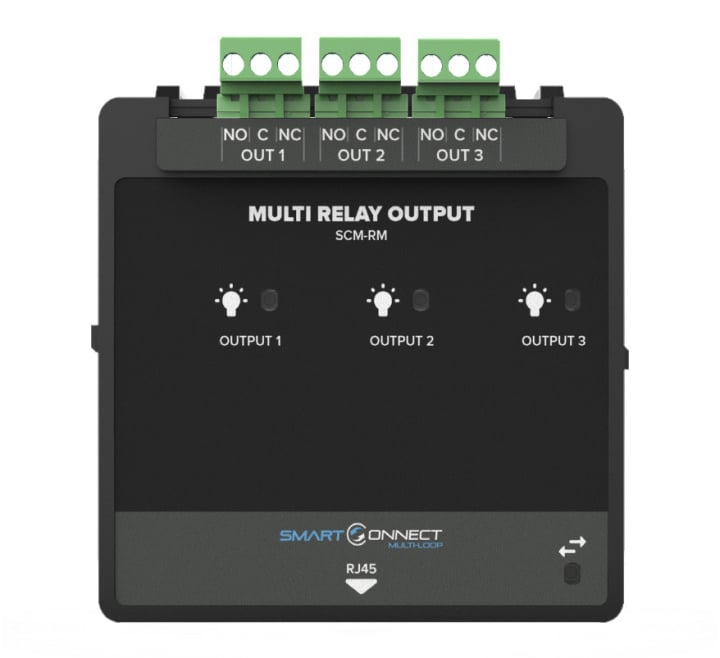

The Zeta SCM-RM is a relay module that is designed to be DIN mounted inside a Smart Connect Multiloop panel. It’s powered and is interfaced to the panel via an RJ45 connection.
The module has 3 form C relays which can be typically used to control lift operation during an alarm, start fire pumps or stop ventilation fans etc.
Each relay output can be configured as a common alarm, common fault, common technical alarm or as a programmable output, controlled via cause and effect programming.
Key Features of the SCM-RM |
|---|
|
> Designed to meet EN54 Part 2 requirements
> 3 x Form C relay outputs > Each relay can be programmed to activate on Alarm, Technical Alarm, or Fault > Extensive front unit indications (see table on datasheet) > Quick and easy to install by plugging the RJ45 cable into the module and control panel (cable supplied with Unit) |
| Brand | Zeta |
|---|---|
| Manufacturer Part No. | SCM-RM |
| Product Series | Zeta Addressable |
| Primary Power Source | 24V DC |
| System Type | Addressable |
| Protocol Compatibility | Zeta MKII |
| Warranty | 2 Years |
Write Your Own Review
FAQ’s for Zeta SmartConnect Multi-Loop Multi-Relay Output Module (SCM-RM)
No questions yet. Be the first to ask the question!
Product Specification for Zeta SmartConnect Multi-Loop Multi-Relay Output Module (SCM-RM)
| Product code: |
SCM-RM |
| Description: | Zeta SmartConnect Multi-Relay Output Module |
| Dimensions: | W:97mm x H:103mm x D:46mm |
| Relay type: |
Form C x 3 |
| Switching capacity: |
5A, 30VDC (resistive) |
| Recommended cable sizes: | 0.8mm2 to 2.5mm2 |
| Relay modes: |
Common alarm, common fault, common technical alarm or Programmable |
| Operating temperature: | -5 to +40oC |
| Max humidity: | 93% RH Non-Condensing |
| Standards/Approvals: | EN54 / LPCB (pending) |
| Weight: | 200g |
