Zeta Raptor MKII Addressable Weatherproof Sounder (White) (ZRAP/W)
SKU
ZRAP/W
£52.56
£43.80
Zeta Raptor MKII Addressable Weatherproof Sounder (White) (ZRAP/W)
- Buy 10 for £50.94 £42.45 each and save 3%
- Buy 20 for £50.14 £41.78 each and save 5%
Available to Order
This item is not currently in stock at our main warehouse, but it is available to backorder or may be sent directly from the manufacturer. Contact us for lead time.
Product Details for Zeta Raptor MKII Addressable Weatherproof Sounder (White) (ZRAP/W)

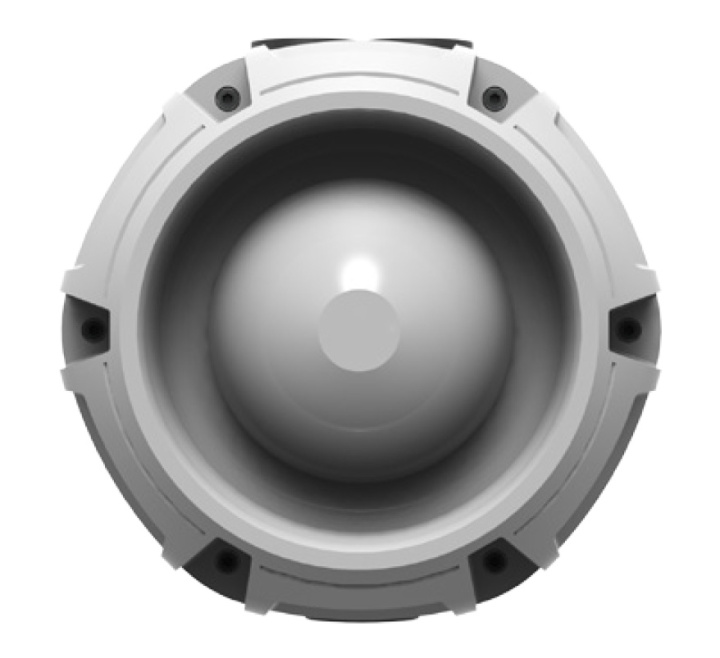

The Zeta ZRAP/W Raptor addressable sounder is a large, white, weatherproof horn sounder suitable for many indoor & outdoor applications. It has 16 tones, selectable at the control panel. Termination of field wiring is made to the back box for a clean first fix.
Key Features of the ZRAP/W |
|---|
|
> Complies with EN54 Part 3 Type B
> White plastic casing > 16 Tone patterns (Approved tones are 0 & 8 - site selectable) > Suitable for surface mounting only > Housed in UL V0 flame retardant ABS > 3 x 20mm cable entries (2 top, 1 bottom) > First fix, wire to back box technology > IP65 Rating |
| Brand | Zeta |
|---|---|
| Manufacturer Part No. | ZRAP/W |
| Product Series | Zeta Addressable |
| Primary Power Source | 24V DC |
| System Type | Addressable |
| Protocol Compatibility | Zeta MKII |
| Colour | White |
| Warranty | 2 Years |
Write Your Own Review
FAQ’s for Zeta Raptor MKII Addressable Weatherproof Sounder (White) (ZRAP/W)
No questions yet. Be the first to ask the question!
Product Specification for Zeta Raptor MKII Addressable Weatherproof Sounder (White) (ZRAP/W)
| Product code: |
ZRAP/W |
| Description: | Zeta Raptor Addressable Weatherproof Sounder, White |
| Dimensions: | W:150mm x H:146mm x D:98mm |
| Colour: | White body |
| Operating voltage: |
17 - 28V DC |
| Quiescent current: |
1.5mA |
| Alarm current: |
5.4mA |
| Sounder type: | B |
| Sounder output: | 96.9dB +/- 3dB (Tone 0) |
| IP rating: |
IP65 (certified to IP33C) |
| Operating temperature: | -25 to +70oC |
| Weight: | 540g |
