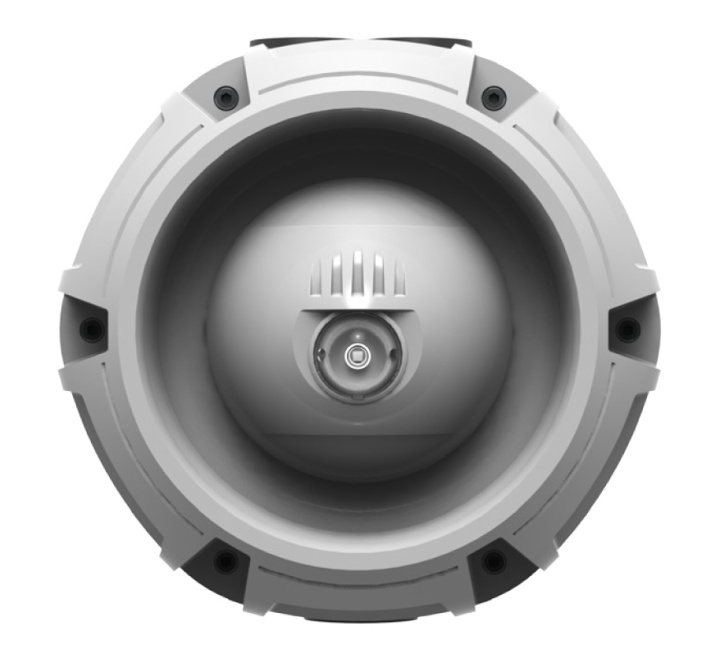

Zeta Raptor Conventional Weatherproof Sounder VAD Beacon (White) (ZRPB/W)
SKU
ZRPB/W
£52.56
£43.80
Zeta Raptor Conventional Weatherproof Sounder VAD Beacon (White) (ZRPB/W)
- Buy 10 for £50.94 £42.45 each and save 3%
- Buy 20 for £50.14 £41.78 each and save 5%
Available to Order
This item is not currently in stock at our main warehouse, but it is available to backorder or may be sent directly from the manufacturer. Contact us for lead time.
Product Details for Zeta Raptor Conventional Weatherproof Sounder VAD Beacon (White) (ZRPB/W)
The Zeta ZRPB/W Raptor conventional white sounder with VAD beacon has a coverage pattern of W 5.1 – 7.25 and a sounder with 22 selectable tones. Designed with an “electronics free” first fix.
Key Features of the ZRPB/W |
|---|
|
> White casing
> Complies with EN54 Part 3 Type B & EN54 Pt 23 > 107dB +/- 3dB @ 1m sound output > 22 Tone patterns (site selectable) > Surface mounting only > Housed in UL V0 flame retardant ABS > 3 x 20mm cable entries (2 top, 1 bottom) > First fix, wire to back box technology > IP65 rating (certified to IP33C) > Flashing rate 0.5 Hz |
| Brand | Zeta |
|---|---|
| Manufacturer Part No. | ZRPB/W |
| Product Series | Zeta Conventional |
| Primary Power Source | 24V DC |
| System Type | Conventional |
| Colour | White |
| Warranty | 2 Years |
Write Your Own Review
FAQ’s for Zeta Raptor Conventional Weatherproof Sounder VAD Beacon (White) (ZRPB/W)
No questions yet. Be the first to ask the question!
Product Specification for Zeta Raptor Conventional Weatherproof Sounder VAD Beacon (White) (ZRPB/W)
| Product code: |
ZRPB/W |
| Description: | Zeta Raptor Conventional Weatherproof Sounder Beacon, White, IP65 |
| Dimensions: | W:150mm x H:146mm x D:107.5mm |
| Body colour: | White |
| Flash colour: | White |
| Flash frequency: | 0.5Hz |
| Voltage: | 17 - 30V |
| Current @ 30V DC: |
10 mA max. |
| Sounder type: |
B |
| Sound output @ 1m: | 107 dB +/- 3dB (Tone 0, 800Hz & 970Hz, 500ms each) |
| Operating temperature: | -25 to 70oC |
| IP rating: | IP65 (Certified to IP33C) |
| Weight: | 550g |
