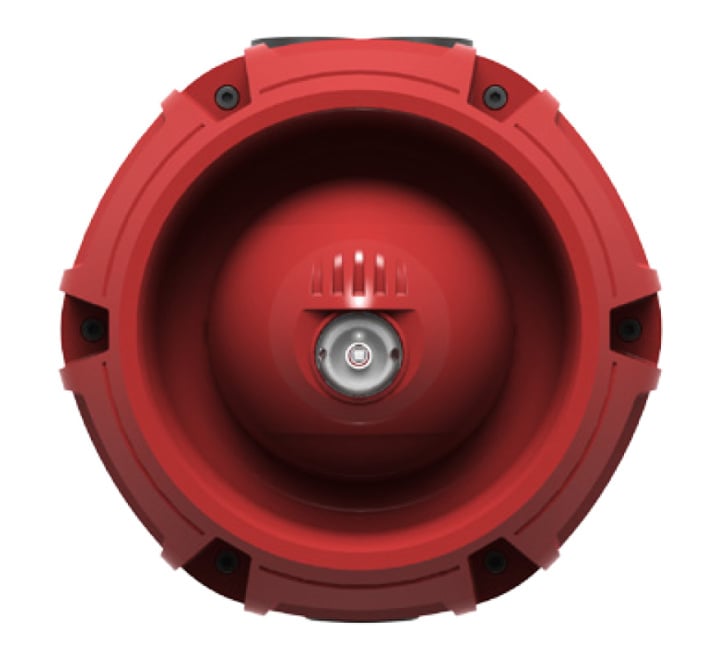

Zeta Raptor MKII Addressable Weatherproof Sounder VAD Beacon (Red) (ZRAPB/R)
SKU
ZRAPB/R
£64.16
£53.47
Zeta Raptor MKII Addressable Weatherproof Sounder VAD Beacon (Red) (ZRAPB/R)
- Buy 10 for £62.18 £51.82 each and save 3%
- Buy 20 for £61.20 £51.00 each and save 5%
Available to Order
This item is not currently in stock at our main warehouse, but it is available to backorder or may be sent directly from the manufacturer. Contact us for lead time.
Product Details for Zeta Raptor MKII Addressable Weatherproof Sounder VAD Beacon (Red) (ZRAPB/R)
The Zeta ZRAPB/R Raptor Addressable Weatherproof Sounder / VAD Beacon is a red unit with an ‘electronics free’ first fix. The VAD beacon has a coverage pattern of W-3.0 – 8.7 and the sounder has 16 tones, selectable at the control panel. It has a flash rate between 0.33Hz and 1.5Hz
Key Features of the ZRAPB/R |
|---|
|
> Complies with EN54 Part 3 Type B & EN54 Pt 23
> Red plastic casing > 16 Tone patterns (Approved tones are 0 & 8) > Suitable for surface mounting only > Housed in UL V0 flame retardant ABS > 3 x 20mm cable entries (2 top, 1 bottom) > First fix, wire to back box technology > Flashing rate 0.33Hz – 1.5Hz > IP65 Rating |
| Brand | Zeta |
|---|---|
| Manufacturer Part No. | ZRAPB/R |
| Product Series | Zeta Addressable |
| Primary Power Source | 24V DC |
| System Type | Addressable |
| Protocol Compatibility | Zeta MKII |
| Warranty | 2 Years |
Write Your Own Review
FAQ’s for Zeta Raptor MKII Addressable Weatherproof Sounder VAD Beacon (Red) (ZRAPB/R)
No questions yet. Be the first to ask the question!
Product Specification for Zeta Raptor MKII Addressable Weatherproof Sounder VAD Beacon (Red) (ZRAPB/R)
| Product code: |
ZRAPB/R |
| Description: | Zeta Raptor Addressable Weatherproof Sounder/Beacon, Red |
| Dimensions: | W:150mm x H:146mm x D:107.5mm |
| Colour: | Red body, White flash |
| Operating voltage: |
17 - 28V DC |
| Quiescent current: |
1.5mA |
| Alarm current: |
18 - 43mA |
| Sounder type: | B |
| Sounder output: | 96.9dB +/- 3dB (Tone 0) |
| Flash frequency: | 0.33Hz - 1.5Hz |
| IP rating: |
IP65 (certified to IP33C) |
| Operating temperature: | -25 to +70oC |
| Weight: | 550g |
