Discontinued Product
This product has been discontinued and is no longer available for purchase. Please contact us for further information and advice on suitable alternatives.

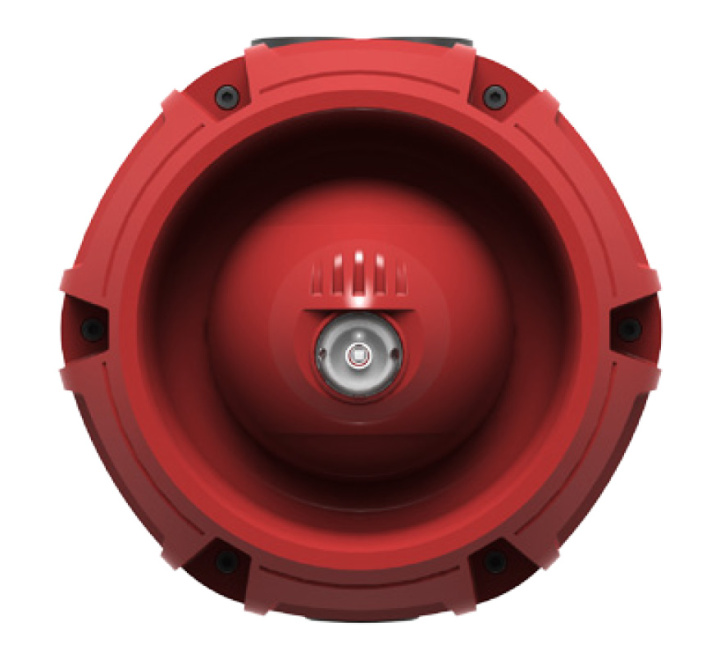

Zeta Raptor Conventional Weatherproof Sounder VAD Beacon (Red) (ZRPB/R)
SKU
ZRPB/R
Zeta Raptor Conventional Weatherproof Sounder VAD Beacon (Red) (ZRPB/R)
Discontinued
Alternative Products
Product Details for Zeta Raptor Conventional Weatherproof Sounder VAD Beacon (Red) (ZRPB/R)
The Zeta ZRPB/R Raptor conventional red sounder with VAD beacon has a coverage pattern of W 5.1 – 7.25 and a sounder with 22 selectable tones. Designed with an “electronics free” first fix.
Key Features of the ZRPB/R |
|---|
|
> Red casing
> Complies with EN54 Part 3 Type B & EN54 Pt 23 > 107dB +/- 3dB @ 1m sound output > 22 Tone patterns (site selectable) > Surface mounting only > Housed in UL V0 flame retardant ABS > 3 x 20mm cable entries (2 top, 1 bottom) > First fix, wire to back box technology > IP65 rating (certified to IP33C) > Flashing rate 0.5 Hz |
| Brand | Zeta |
|---|---|
| Manufacturer Part No. | ZRPB/R |
| Product Series | Zeta Conventional |
| Primary Power Source | 24V DC |
| System Type | Conventional |
| Warranty | 2 Years |
FAQ’s for Zeta Raptor Conventional Weatherproof Sounder VAD Beacon (Red) (ZRPB/R)
No questions yet. Be the first to ask the question!
Product Specification for Zeta Raptor Conventional Weatherproof Sounder VAD Beacon (Red) (ZRPB/R)
| Product code: |
ZRPB/R |
| Description: | Zeta Raptor Conventional Weatherproof Sounder Beacon, Red, IP65 |
| Dimensions: | W:150mm x H:146mm x D:107.5mm |
| Body colour: | Red |
| Flash colour: | White |
| Flash frequency: | 0.5Hz |
| Voltage: | 17 - 30V |
| Current @ 30V DC: |
10 mA max. |
| Sounder type: |
B |
| Sound output @ 1m: | 107 dB +/- 3dB (Tone 0, 800Hz & 970Hz, 500ms each) |
| Operating temperature: | -25 to 70oC |
| IP rating: | IP65 (Certified to IP33C) |
| Weight: | 550g |
