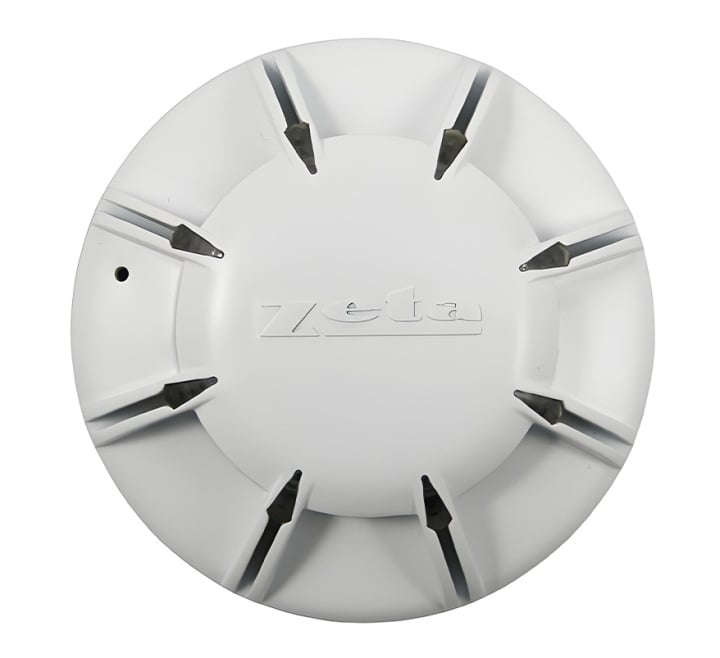

Zeta Fyreye MKII Conventional Optical Smoke Detector (MKII-OP)
SKU
MKII-OP
£16.73
£13.94
Zeta Fyreye MKII Conventional Optical Smoke Detector (MKII-OP)
- Buy 10 for £16.21 £13.51 each and save 3%
- Buy 20 for £15.95 £13.29 each and save 5%
In Stock
Product Details for Zeta Fyreye MKII Conventional Optical Smoke Detector (MKII-OP)
The Zeta Fyreye MKII-OP Conventional Optical Smoke Detector uses a pulsing IR LED & photodiode to detect IR scatter caused by smoke entering the chamber.
The detector is particularly suitable for detecting optically dense smoke, involving materials such as soft furnishings, PVC, plastic, foam and similar materials that produce small visible particles (0.5 to 10μm).
The detector will work with most modern fire alarm control panels, and comes supplied with a locking grub screw to prevent unauthorised head removal.
There are 4 types of mounting base available - standard or deep and with or without diode. Ideal for use with the Zeta Infinity range of conventional fire alarm control panels.
Key Features of the MKII-OP |
|---|
|
> Conventional Optical Smoke Detector
> White > Uses pulsing IR LED & photodiode to detect IR scatter > Designed to meet EN54 requirement > Lockable to base to stop unauthorised removal > Remote LED output > Compatible with all Fyreye MK11 bases |
| Brand | Zeta |
|---|---|
| Manufacturer Part No. | MKII-OP |
| Product Series | Zeta Conventional |
| Primary Power Source | 24V DC |
| System Type | Conventional |
| Sensor Type | Optical |
| Detectable Medium | Smoke |
| Colour | White |
| Warranty | 2 Years |
Write Your Own Review
FAQ’s for Zeta Fyreye MKII Conventional Optical Smoke Detector (MKII-OP)
No questions yet. Be the first to ask the question!
Product Specification for Zeta Fyreye MKII Conventional Optical Smoke Detector (MKII-OP)
| Product code: |
MKII-OP |
| Description: | Zeta MKII Optical Smoke Detector |
| Dimensions (with base): | 100mm x 48mm |
| Design standard: |
EN54 part 7 |
| Approval: |
DIFT |
| CPD No.: |
0845-CPD-232.1700 |
| Operating voltage: |
9 - 33 VDC |
| Quiescent current: |
40μA |
| Alarm current @ 24 VDC |
34 mA |
| Operating temperature: |
-10°C to +50°C |
| Min. continuous temperature: |
0°C |
| Max. humidity: |
95% RH non-condensing |
| Alarm condition: |
2.4% obscuration per metre |
| Coverage: |
100m2 |
| IP rating: |
IP43 |
| Start up time: |
10 seconds |
| Weight (with base): | 75g (133g) |
