Discontinued Product
This product has been discontinued and is no longer available for purchase. Please contact us for further information and advice on suitable alternatives.

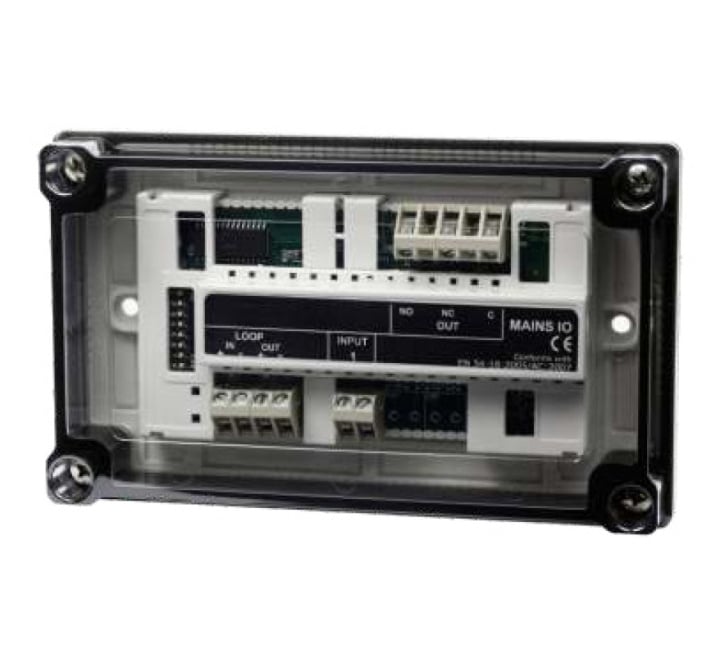

Zeta Simplicity CO Mains Interface Module, 5.0A Rating (ZIOU/230)
SKU
ZIOU/230
Zeta Mains Interface Module, 5.0A Rating for use with Simplicity CO Control Panel (ZIOU/230)
Discontinued
Product Details for Zeta Simplicity CO Mains Interface Module, 5.0A Rating (ZIOU/230)
The Zeta ZIOU/230 Mains Interface Module is a fully monitored loop-powered device which permits the interfacing of ventilation equipment with the Simplicity CO Control Panel using normally open dry contact connections. When in place, it will trigger at pre-determined levels of CO concentration and should this concentration keep rising while the ventilation is still on, an alarm is raised at a further pre-determined level.
Key Features of the ZIOU/230 |
|---|
|
> Permits interfacing of ventilation equipment with Simplicity CO Control Panel
> Fully monitored loop-powered device |
| Brand | Zeta |
|---|---|
| Manufacturer Part No. | ZIOU/230 |
| Product Series | Simplicity CO |
| Primary Power Source | 24V DC |
| System Type | Addressable |
| Protocol Compatibility | Zeta MKII |
| Warranty | 2 Years |
FAQ’s for Zeta Simplicity CO Mains Interface Module, 5.0A Rating (ZIOU/230)
No questions yet. Be the first to ask the question!
Product Specification for Zeta Simplicity CO Mains Interface Module, 5.0A Rating (ZIOU/230)
| Product code: |
ZIOU/230 |
| Description: | Zeta Mains Switching I/O Unit - Standard Protocol (MKI) |
| Dimensions: | W:150mm x L:90mm x H:45mm |
| Supply voltage: |
Loop powered - 17 to 30V DC |
| Loop current - Quiescent: |
2.7mA |
| Loop current - Alarm: |
6.1mA |
| Loop current - Fault: |
6.5mA |
| Loop current - Output active: | 6.1mA (9.7mA with Input in alarm) |
| Output Relay contact rating: | 5A 250 VAC/30V DC |
| Max. cable size: | 2.5 mm2 |
| Case material: |
ABS |
| Operating temperature: | -10 to +55oC |
| Max humidity: | 95% RH Non-Condensing |
| Weight: | 220g |
