Zeta SmartConnect Multi-Loop Card Module (Legacy Protocol) (SCM-LCM/STD)
SKU
SCM-LCM/STD
£247.07
£205.89
Zeta SmartConnect Multi-Loop Card Module (Legacy Protocol) (SCM-LCM/STD)
Available to Order
This item is not currently in stock at our main warehouse, but it is available to backorder or may be sent directly from the manufacturer. Contact us for lead time.
Product Details for Zeta SmartConnect Multi-Loop Card Module (Legacy Protocol) (SCM-LCM/STD)

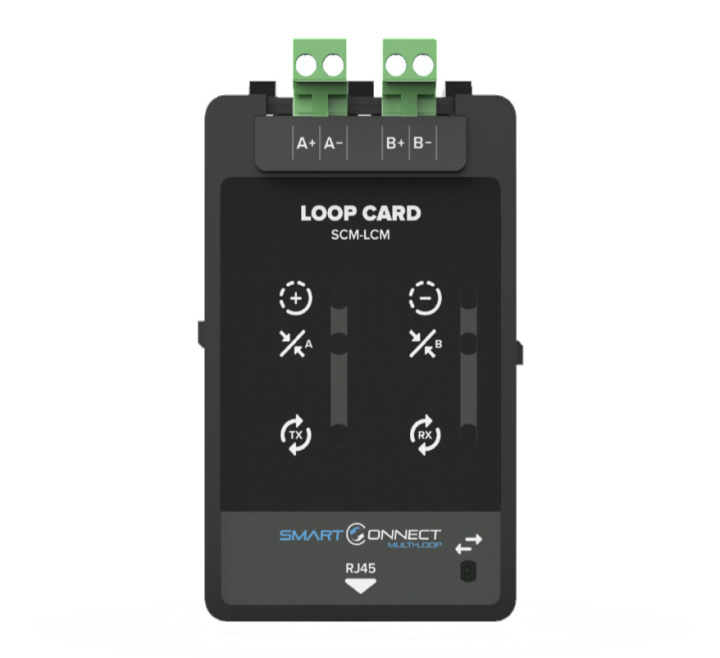

The plug-in Zeta SCM-LCM/STD legacy protocol loop card module module provides power for and handles communications to the analogue addressable devices, continuously monitors the status of all loop devices and displays their status. Up to 250 addresses (450mA max load) can be connected to a single loop. The loop devices can be addressed via an 8-way DIP switch or they can be soft addressed using the MKII-TOOL handheld programming tool which helps minimise the potential for error and could reduce the installation time associated with traditional hard addressing.
The AUTO-LEARN allows the system to learn what devices have been installed on the loop and helps to locate wiring faults on the loop.
Key Features of the SCM-LCM/STD |
|---|
|
> SmartConnect Loop Card
> Up to 250 addresses > Legacy protocol |
| Brand | Zeta |
|---|---|
| Manufacturer Part No. | SCM-LCM/STD |
| Product Series | Zeta Addressable |
| Primary Power Source | 24V DC |
| System Type | Addressable |
| Number of Loops (Fitted) | 1 |
| Protocol Compatibility | Zeta MKI |
| Warranty | 2 Years |
