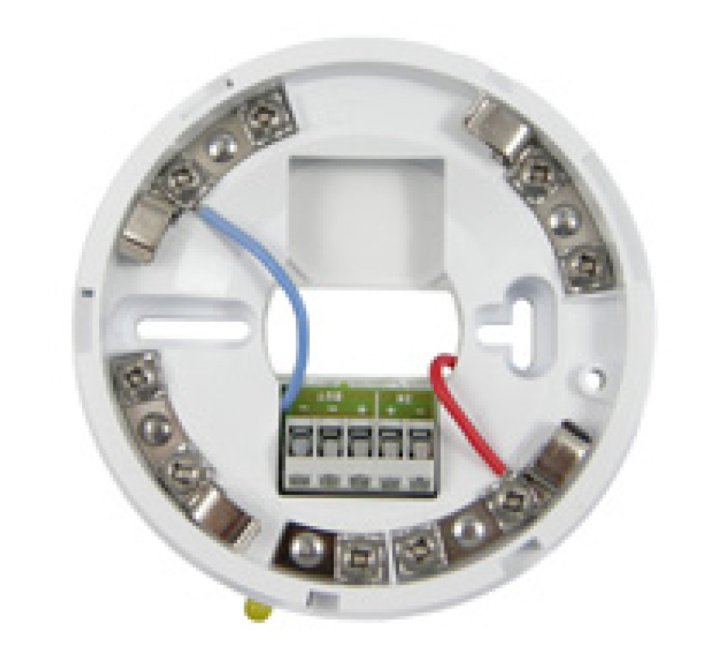

Zeta Fyreye MKII Addressable Isolator Detector Base (MKII-IB)
SKU
MKII-IB
£12.79
£10.66
Zeta Fyreye MKII Addressable Isolator Detector Base (MKII-IB)
- Buy 10 for £12.40 £10.33 each and save 3%
- Buy 20 for £12.20 £10.17 each and save 5%
In Stock
Product Details for Zeta Fyreye MKII Addressable Isolator Detector Base (MKII-IB)
The Zeta MKII-IB isolator base is used to protect the addressable loop against short circuits. They should be used at least every 32 devices, but it is better practice to use them at the end of every zone.
Key Features of the MKII-IB |
|---|
|
> Isolator Detector Base
> Addressable > for Fyreye MKII devices > 100 x 25mm |
| Brand | Zeta |
|---|---|
| Manufacturer Part No. | MKII-IB |
| Product Series | Zeta Addressable |
| Primary Power Source | 24V DC |
| System Type | Addressable |
| Protocol Compatibility | Zeta MKII |
| Warranty | 2 Years |
Write Your Own Review
FAQ’s for Zeta Fyreye MKII Addressable Isolator Detector Base (MKII-IB)
No questions yet. Be the first to ask the question!
Product Specification for Zeta Fyreye MKII Addressable Isolator Detector Base (MKII-IB)
| Product code: |
MKII-IB |
| Description: | Zeta Fyreye MKII Addressable Isolator Detector Base |
| Dimensions: | Diameter: 100mm x D:25mm |
| Supply voltage: | 17 to 28V DC |
| Quiescent current @ 24V: | 50μA |
| Alarm current @ 24V: | 7mA |
| Connections: | IN+, IN-, OUT+, OUT- |
| Max. wind speed: |
Not affected |
| Operating temperature: | -20 to +90oC (non-condensing or icing) |
| Weight: | 85g |
