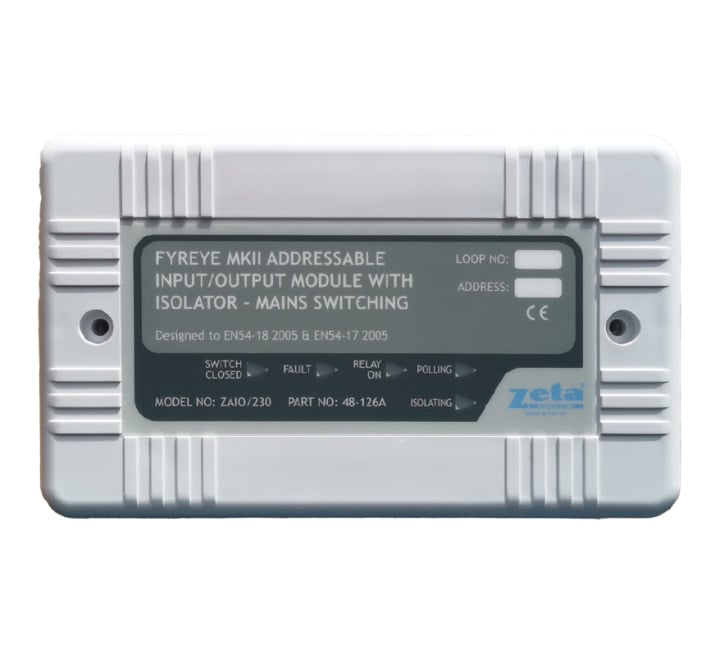

Zeta Fyreye MKII Addressable Input/Output Module with Isolator (Mains Voltage Rated) (ZAIO/230)
- Buy 10 for £55.24 £46.03 each and save 3%
- Buy 20 for £54.36 £45.30 each and save 5%
Product Details for Zeta Fyreye MKII Addressable Input/Output Module with Isolator (Mains Voltage Rated) (ZAIO/230)
The Zeta ZAIO/230 Mains Rated Single Channel Input/Output Module is a fully monitored loop powered device that permits the interfacing of 3rd party equipment with the Fire Alarm Control panel using normally open, dry contact connections.
The connection to the input is monitored for fault (open or short circuit) and alarm conditions.
The interface is used to monitor the contacts of an external system which must be interfaced to the Fire Alarm System, for example a Flow Switch in a sprinkler system to indicate if the sprinklers have been activated or extinguishant level monitoring in Gas Extinguishing systems, etc.
The Module has a loop short-circuit isolator and a voltage-free, single pole change-over mains rated output. The output relay is always powered directly from the detection loop. It is not required to use an external 24V DC power supply. Relay operation is confirmed by an on-board red LED.
An 8-way D.I.L switch is provided to configure the module’s address. This value can be set in the range 1 to 126 for standard protocol.
Key Features of the ZAIO/230 |
|---|
|
> Fast activation response
> Loop powered > 5 x Status LEDs provided > Low Power Consumption > Module features an integral short-circuit loop isolator > Single mains rated relay contact (8A @ 230V AC) |
| Brand | Zeta |
|---|---|
| Manufacturer Part No. | ZAIO/230 |
| Product Series | Zeta Addressable |
| Primary Power Source | 24V DC |
| System Type | Addressable |
| Protocol Compatibility | Zeta MKII |
| Warranty | 2 Years |
FAQ’s for Zeta Fyreye MKII Addressable Input/Output Module with Isolator (Mains Voltage Rated) (ZAIO/230)
Product Specification for Zeta Fyreye MKII Addressable Input/Output Module with Isolator (Mains Voltage Rated) (ZAIO/230)
| Product code: |
ZAIO/230 |
| Description: | Zeta Single Channel Input/Output Module, Mains Voltage Rated - Fyreye MKII Protocol |
| Dimensions: | W:150mm x H:90mm x D:45mm |
| Supply voltage: |
Loop powered - 17 to 30V DC |
| Loop current - Quiescent: |
2.7mA |
| Loop current - Alarm: |
6.1mA |
| Loop current - Fault: |
6.5mA |
| Loop current - Output active: | 6.1mA (9.7mA with Input in alarm) |
| Output Relay contact rating: | 5A 250 VAC/30V DC |
| Max. cable size: | 2.5 mm2 |
| Case material: |
ABS |
| Operating temperature: | -10 to +55oC |
| Max humidity: | 95% RH Non-Condensing |
| Weight: | 220g |
