Zeta SmartConnect Multi-Loop Input Module (6 Inputs) (SCM-MIM)
SKU
SCM-MIM
£180.86
£150.72
Zeta SmartConnect Multi-Loop Input Module (6 Inputs) (SCM-MIM)
Available to Order
This item is not currently in stock at our main warehouse, but it is available to backorder or may be sent directly from the manufacturer. Contact us for lead time.
Product Details for Zeta SmartConnect Multi-Loop Input Module (6 Inputs) (SCM-MIM)

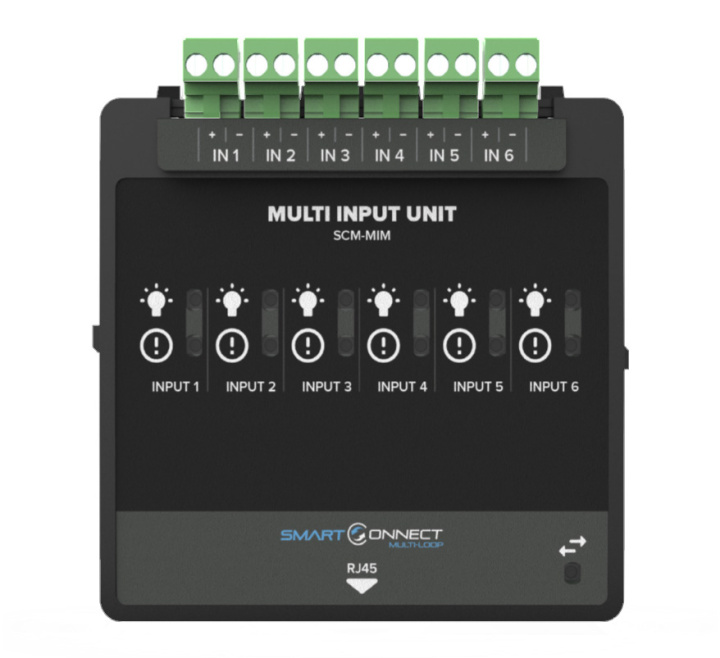

The Zeta SCM-MIM is a 6 input module that is designed to be DIN mounted inside of a SmartConnect Multiloop control panel. It’s powered and interfaced to the SmartConnect Multiloop panel via an RJ45 connection.
The module has 6 class B inputs that are commonly used to monitor and raise alarms from any ancillary equipment such as sprinkler flow switches, aspirating detectors, secondary fire control panels, beam detectors, external power supplies etc.
The module monitors and transmits the status (normal, open circuit, short circuit, or alarm) of any inputs to a control panel. Each input can be programmed to either give a supervisory or alarm signal when active.
Key Features of the SCM-MIM |
|---|
|
> Designed to EN54 Part 2
> Each input is monitored for open & short circuits > Extensive front unit status indications (See table on datasheet) > Easy to install by plugging the RJ45 cable into the module and control panel (cable supplied with Unit) > Each input can be configured as either Alarm or Supervisory |
| Brand | Zeta |
|---|---|
| Manufacturer Part No. | SCM-MIM |
| Product Series | Zeta Addressable |
| Primary Power Source | 24V DC |
| System Type | Addressable |
| Protocol Compatibility | Zeta MKII |
| Warranty | 2 Years |
Write Your Own Review
FAQ’s for Zeta SmartConnect Multi-Loop Input Module (6 Inputs) (SCM-MIM)
No questions yet. Be the first to ask the question!
Product Specification for Zeta SmartConnect Multi-Loop Input Module (6 Inputs) (SCM-MIM)
| Product code: |
SCM-MIM |
| Description: | Zeta Input Module, 6 Inputs |
| Dimensions: | W:97mm x H:103mm x D:46mm |
| Wiring class: |
6 x Class B [Power limited & Supervisory) |
| Circuit voltage: |
24VDC Nominal (16V - 24.5V with EOL fitted) |
| Zone max. line impedance: | 10Ω |
| End of line resistor: | 4K7Ω |
| Triggering resistor: | 1KΩ |
| Recommended cable sizes: | 22 AWG to 18 AWG (0.3mm2 to 0.8mm2) |
| Compatible devices: | MKII Conventional Detectors and Call points |
| Max. devices per zone: | 20 |
| Operating temperature: | 0 to +49oC |
| Max humidity: | 93% RH Non-Condensing |
| Standards/Approvals: | EN54 / LPCB (pending) |
| Weight: | 200g |
