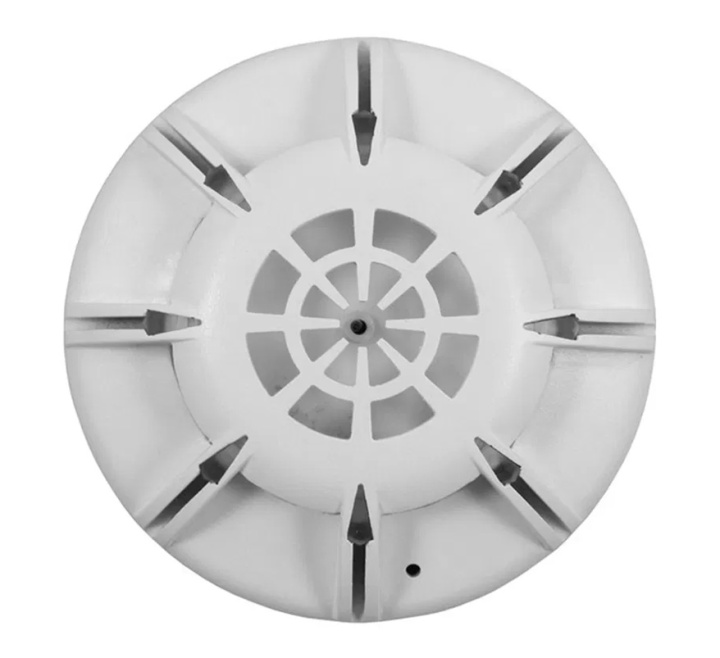

Zeta Fyreye MKII Addressable Fixed 90°C Heat Detector (MKII-AHF/CS90)
SKU
MKII-AHF/CS90
£30.37
£25.31
Zeta Fyreye MKII Addressable Fixed 90°C Heat Detector (MKII-AHF/CS90)
- Buy 10 for £29.44 £24.53 each and save 3%
- Buy 20 for £28.97 £24.14 each and save 5%
Available on Backorder
This item is not currently in stock, but it is available to backorder. Contact us for lead time.
Product Details for Zeta Fyreye MKII Addressable Fixed 90°C Heat Detector (MKII-AHF/CS90)
The Zeta Fyreye MKII Addressable Fixed Heat Detector (MKII-AHF/CS90) has a single thermistor arrangement that gives an alarm at a temperature above 86°C.
Key Features of the MKII-AHF/CS90 |
|---|
|
> Designed to meet EN54 requirement
> Lockable to base to prevent unauthorised removal > Remote LED output > 8 LEDs for improved 360° visibility > Compatible with all Fyreye MkII bases > Addressed with dip switches or hand-held programmer |
| Brand | Zeta |
|---|---|
| Manufacturer Part No. | MKII-AHF/CS90 |
| Product Series | Zeta Addressable |
| Primary Power Source | 24V DC |
| System Type | Addressable |
| Protocol Compatibility | Zeta MKII |
| Sensor Type | Thermistor |
| Detectable Medium | Heat |
| Warranty | 2 Years |
Write Your Own Review
FAQ’s for Zeta Fyreye MKII Addressable Fixed 90°C Heat Detector (MKII-AHF/CS90)
No questions yet. Be the first to ask the question!
Product Specification for Zeta Fyreye MKII Addressable Fixed 90°C Heat Detector (MKII-AHF/CS90)
| Product code: |
MKII-AHF/CS90 |
| Description: | ZetaFyreye MKII Addressable Heat Detector, Fixed Heat 90°C |
| Dimensions: | Diameter: 100mm x D:49mm (with base) |
| Detector class: | Fixed Heat Only CS |
| Operating voltage: | 17 to 28V DC |
| Quiescent current: | 500μA |
| Alarm current @ 24V DC: | 5mA |
| Alarm condition: | Fixed heat trigger @ 90°C |
| Coverage: | 50m² |
| IP Rating: | IP43 |
| Start-up time: | 10 seconds |
| Remote output: | 5mA at 24VDC |
| Max. humidity: | 95% RH non-condensing |
| Min. continuous temp: | 0oC |
| Operating temperature: | -10 to +80oC |
| Standard / Approval: | EN54 part 5 / LPCB |
| Weight: | 75g (133g with base) |
