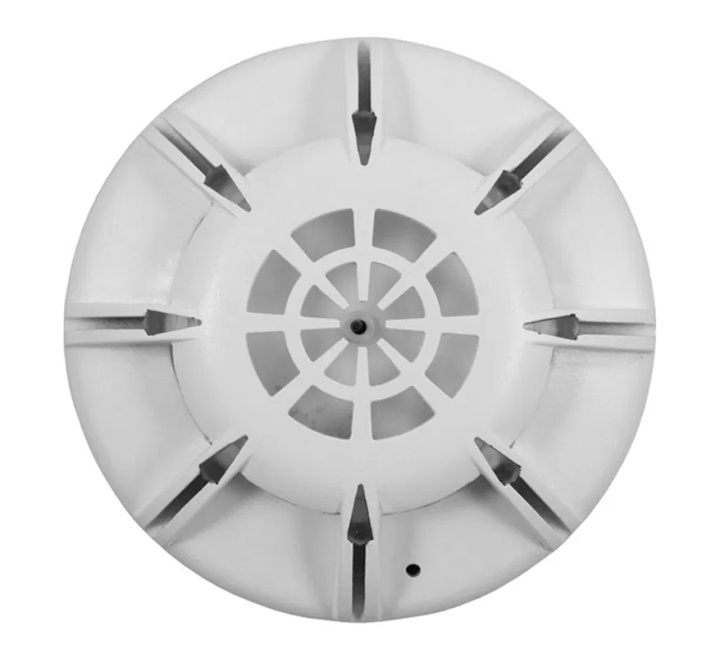

Zeta Fyreye MKII Addressable Fixed 57°C Heat Detector (MKII-AHF)
SKU
MKII-AHF
£28.67
£23.89
Zeta Fyreye MKII Addressable Fixed 57°C Heat Detector (MKII-AHF)
- Buy 10 for £27.79 £23.16 each and save 3%
- Buy 20 for £27.35 £22.79 each and save 5%
In Stock
Product Details for Zeta Fyreye MKII Addressable Fixed 57°C Heat Detector (MKII-AHF)
The Zeta Fyreye MKII Fixed Heat Detector (MKII-AHF) has a single thermistor arrangement that gives an alarm at a temperature of 57°C.
Key Features of the MKII-AHF |
|---|
|
> Designed to meet EN54 requirement
> Lockable to base to prevent unauthorised removal > Remote LED output > 8 LEDs for improved 360° visibility > Compatible with all Fyreye MkII bases > Addressed with dip switches or hand-held programmer |
| Brand | Zeta |
|---|---|
| Manufacturer Part No. | MKII-AHF |
| Product Series | Zeta Addressable |
| Primary Power Source | 24V DC |
| System Type | Addressable |
| Protocol Compatibility | Zeta MKII |
| Sensor Type | Thermistor |
| Detectable Medium | Heat |
| Colour | White |
| Warranty | 2 Years |
Write Your Own Review
FAQ’s for Zeta Fyreye MKII Addressable Fixed 57°C Heat Detector (MKII-AHF)
No questions yet. Be the first to ask the question!
Product Specification for Zeta Fyreye MKII Addressable Fixed 57°C Heat Detector (MKII-AHF)
| Product code: |
MKII-AHF |
| Description: | Zeta Fyreye MKII Addressable Detector, Fixed Heat 57°C |
| Dimensions: | Diameter: 100mm x D:49mm (with base) |
| Detector class: | Fixed Heat Only A2S |
| Operating voltage: | 17 to 28V DC |
| Quiescent current: | 500μA |
| Alarm current @ 24V DC: | 5mA |
| Alarm condition: | Fixed heat trigger @ 57°C |
| Coverage: | 50m² |
| IP Rating: | IP43 |
| Start-up time: | 10 seconds |
| Remote output: | 5mA at 24VDC |
| Max. humidity: | 95% RH non-condensing |
| Min. continuous temp: | 0oC |
| Operating temperature: | -10 to +50oC |
| Standard / Approval: | EN54 part 5 / LPCB |
| Weight: | 75g (133g with base) |
