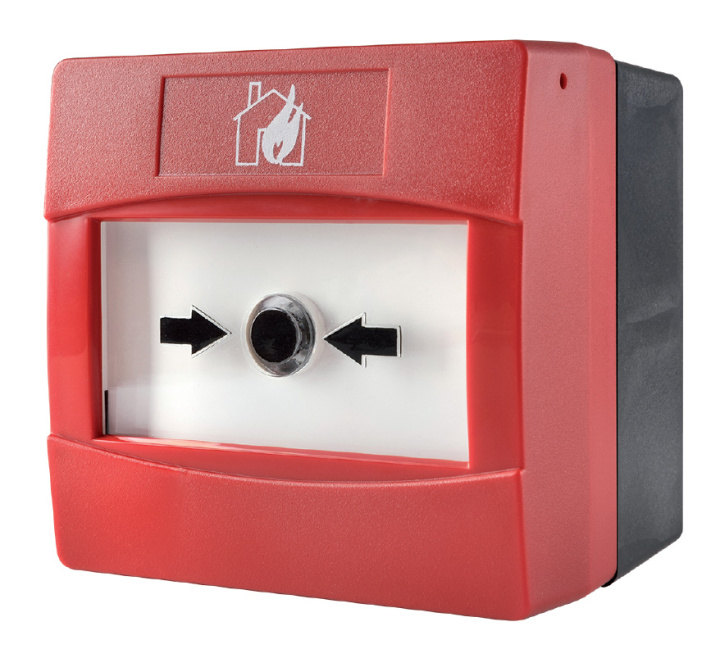

Zeta CP4 Weatherproof Conventional Manual Call Point (ZT-CP4/WP)
SKU
ZT-CP4/WP
£51.53
£42.94
Zeta CP4 Weatherproof Conventional Manual Call Point (ZT-CP4/WP)
- Buy 10 for £49.94 £41.62 each and save 3%
- Buy 20 for £49.15 £40.96 each and save 5%
Available to Order
This item is not currently in stock at our main warehouse, but it is available to backorder or may be sent directly from the manufacturer. Contact us for lead time.
Product Details for Zeta CP4 Weatherproof Conventional Manual Call Point (ZT-CP4/WP)
The Zeta ZT-CP4/WP is a weatherproof, high visibility, resettable conventional manual call point. When the resettable element is pressed, the spring mechanism mimics the feel of a break glass and the resettable element goes back. This action system gives high performance and guarantees alarm detection in every condition. A reflective polyester flag appears in the bottom of the operating face, providing a high level of visibility for the user. This manual call point is reliable, easy to install and trouble free.
Key Features of the ZT-CP4/WP |
|---|
|
> Resettable element
> Weatherproof (IP67) > Surface mount > EN54-11 approved > High visibility of alarm condition > Reliable mechanism > High impact resistant ABS glass fibre material > Easy to install |
| Brand | Zeta |
|---|---|
| Manufacturer Part No. | ZT-CP4/WP |
| Product Series | Zeta Conventional |
| Primary Power Source | 24V DC |
| System Type | Conventional |
| Warranty | 2 Years |
Write Your Own Review
FAQ’s for Zeta CP4 Weatherproof Conventional Manual Call Point (ZT-CP4/WP)
No questions yet. Be the first to ask the question!
Product Specification for Zeta CP4 Weatherproof Conventional Manual Call Point (ZT-CP4/WP)
| Product code: |
ZT-CP4/WP |
| Description: | Zeta Resettable CP4 Outdoor Call Point, Surface |
| Dimensions: | W:85mm x H:85mm x D:72mm |
| Colour: |
Red |
| Material: | ABS/Polycarbonate/PA6 + Glass Fibre |
| Maximum voltage: |
30V |
| Minimum voltage*: | 5.0V if LED with R1 is chosen 6.0V if LED with R2 is chosen * Below min. voltage LED current is lower than 5mA |
| Current rating (non-operated): | 0mA |
| Current rating (operated): |
19mA @ 12V - R1 |
| Cable termination: | 0.5 - 2.5mm2 |
| Operating temperature: | -30 / +70oC |
| Humidity: | 0 - 95% |
| IP rating: | IP67 |
| Weight: | 150g |
