Zeta SmartConnect Multi-Loop Conventional Zone Monitor (6 Circuits) (SCM-ZMM)
SKU
SCM-ZMM
£180.86
£150.72
Zeta SmartConnect Multi-Loop Conventional Zone Monitor (6 Circuits) (SCM-ZMM)
Available to Order
This item is not currently in stock at our main warehouse, but it is available to backorder or may be sent directly from the manufacturer. Contact us for lead time.
Product Details for Zeta SmartConnect Multi-Loop Conventional Zone Monitor (6 Circuits) (SCM-ZMM)

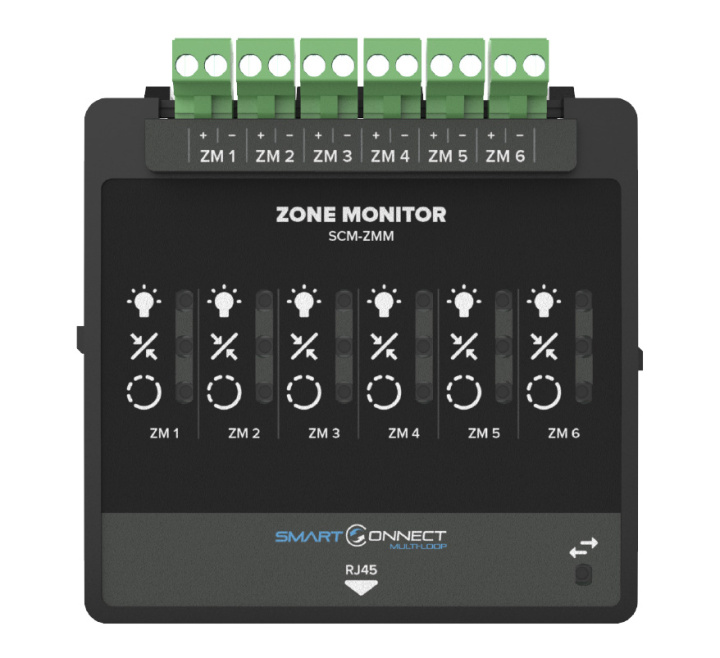

The Zeta SCM-ZMM is a 6 zone monitor module that is designed to be DIN mounted inside of a Smart Connect Multiloop control panel. It’s powered and interfaced to the panel via an RJ45 connection.
The module has 6 conventional zones which can be typically used for conventional devices and/or for special detectors that are not available in addressable form such as UV detectors, aspiration and beam detectors etc.
The module monitors and transmits the status (normal, open, short, or alarm) of a zone with the detectors to a control panel. Each zone input can be programmed to either give an Alarm signal or a technical alarm signal when active.
Key Features of the SCM-ZMM |
|---|
|
> Designed to EN54 Part 2
> 6 x Conventional Zones > Each zone is monitored for open and short circuit > Extensive front unit status indications (see table on datasheet) > Easy to install by plugging the RJ45 cable into the module and control panel (cable supplied with unit) > Each zone input can be configured as either Alarm or Technical Alarm |
| Brand | Zeta |
|---|---|
| Manufacturer Part No. | SCM-ZMM |
| Product Series | Zeta Addressable |
| Primary Power Source | 24V DC |
| System Type | Addressable |
| Number of Zones | 6 |
| Protocol Compatibility | Zeta MKII |
| Warranty | 2 Years |
Write Your Own Review
FAQ’s for Zeta SmartConnect Multi-Loop Conventional Zone Monitor (6 Circuits) (SCM-ZMM)
No questions yet. Be the first to ask the question!
Product Specification for Zeta SmartConnect Multi-Loop Conventional Zone Monitor (6 Circuits) (SCM-ZMM)
| Product code: |
SCM-ZMM |
| Description: | Zeta Conventional Zone Monitor, 6 Circuits |
| Dimensions: | W:97mm x H:103mm x D:46mm |
| Circuit voltage: |
26VDC Nominal (17.5V - 26.5V with EOL connected) |
| Wiring: |
6 x Conventional zones |
| Zone Max Current (under S/C conditions) |
56mA |
| Zone max. line impedance: | 10Ω |
| End of line resistor: | 4K7Ω |
| Triggering resistor: | 1KΩ |
| Recommended cable sizes: | 0.3mm2 to 2.5mm2 |
| Compatible devices: | MKII Conventional Detectors and Call points |
| Max. devices per zone: | 20 |
| Operating temperature: | 0 to +49oC |
| Max humidity: | 93% RH Non-Condensing |
| Standards/Approvals: | EN54 part 2/ LPCB (pending) |
| Weight: | 200g |
