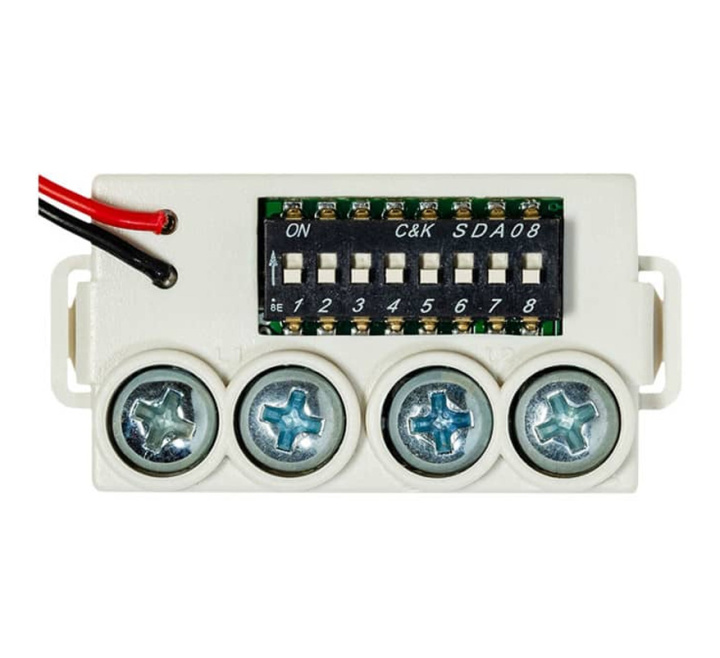

Zeta Special Mini Modules (White) - Beam Detector (SMM/B)
SKU
SMM/B
£25.60
£21.33
Zeta Special Mini Modules (White) - Beam Detector (SMM/B)
- Buy 10 for £24.82 £20.68 each and save 3%
- Buy 20 for £24.42 £20.35 each and save 5%
Available on Backorder
This item is not currently in stock, but it is available to backorder. Contact us for lead time.
Product Details for Zeta Special Mini Modules (White) - Beam Detector (SMM/B)
The Zeta SMM/B module allows the Zeta Auto Aligning Beam Detector to be connected to an addressable loop (Max 16 per loop).
Key Features of the SMM/B |
|---|
|
> Zeta special mini module
> For beam detector > White |
| Brand | Zeta |
|---|---|
| Manufacturer Part No. | SMM/B |
| Product Series | Zeta Addressable |
| Primary Power Source | 24V DC |
| System Type | Addressable |
| Protocol Compatibility | Zeta MKII |
| Colour | White |
| Warranty | 2 Years |
Write Your Own Review
FAQ’s for Zeta Special Mini Modules (White) - Beam Detector (SMM/B)
No questions yet. Be the first to ask the question!
Product Specification for Zeta Special Mini Modules (White) - Beam Detector (SMM/B)
| Product code: |
SMM/B |
| Description: | Zeta Special Mini Modules (White) - Beam Detector |
| Power voltage (loop): | 17 - 28V |
| Zone output capacity: | 13mA max. |
| Zone ouitput voltage: | Vloop - 1.7V |
| Alarm current: | 13mA |
| Quiescent current @ 24V: | 500uA |
| End of line value: |
100k resistor |
| Trigger resistor: |
1k resistor |
