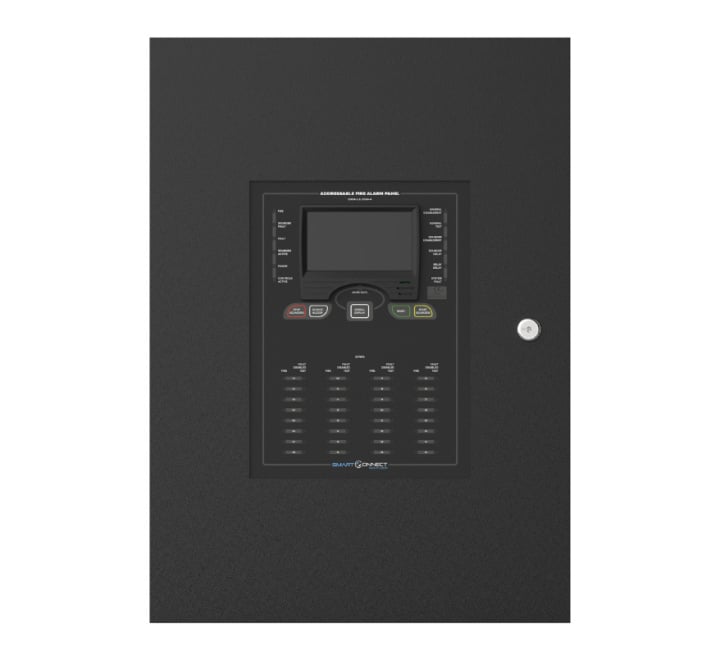

Product Details for Zeta SmartConnect Multi-Loop Addressable Fire Panel (6 Module Ports - Deep Enclosure) (SMART6/32/D)
The Zeta SMART6/32/D Multi-loop is a powerful Analogue Addressable Fire Alarm Control Panel in a deep enclosure that offers a variety of modular components which allow it to meet a wide variety of applications.
The graphical touchscreen provides a user-friendly interface and the control panel has the capability to support complex cause and effect programming and a wide range of user-controllable functions, making the panel suitable for a range of projects from multi-site commercial developments to industrial applications.
It can operate as part of a networked system (up to 64 panels) or as a stand-alone panel. Powerful programming options allow configurable control over whether messages from specific panels are transmitted around the network or remain local.
Each system component has been designed to operate as part of a Smart Multi-loop EN54 listed system providing assurance that the detectors, interfaces, sounders and panel are all compatible with one other and that the full range of system functionality is supported by all devices.
32 Zonal LEDS. Deep enclosure houses 2 x 17Ah batteries.
Key Features of the SMART6/32/D |
|---|
|
> 32 Zonal LEDs
> Deep enclosure houses 2 x 17Ah batteries > Modular construction allows a panel to be specified using only required modules > Up to 4 loop card modules > 4.3” colour touch screen display > Capacity for up to 6 ‘intelligent’ modules > Full system redundancy > Connection to TCP/IP Module > Day/Night mode programming > Cause/effect programming via front panel or the Smart configuration PC software > 8032 event log entries > By using multiple zone monitor modules, the panel can be configured into a fully functioning conventional panel > 250 Fyreye MKII devices per loop > 254 addressable programmable zones > Up to 64 panel ‘peer-to-peer’ network > Positive Alarm sequence > Alarm Verification Day/night (Building occupied/ unoccupied) programming > Alarm circuit special application 24V mode > 400W Power Supply |
| Brand | Zeta |
|---|---|
| Manufacturer Part No. | SMART6/32/D |
| Product Series | Zeta Addressable |
| Primary Power Source | Mains Powered (230V) |
| System Type | Addressable |
| Protocol Compatibility | Zeta MKII |
| Colour | Black |
| Warranty | 2 Years |
FAQ’s for Zeta SmartConnect Multi-Loop Addressable Fire Panel (6 Module Ports - Deep Enclosure) (SMART6/32/D)
Product Specification for Zeta SmartConnect Multi-Loop Addressable Fire Panel (6 Module Ports - Deep Enclosure) (SMART6/32/D)
| Product code: |
SMART6/32/D |
| Description: | Zeta SmartConnect 6 Modules, 32 Zonal LEDs - Deep Enclosure 2 x 17Ah Batteries |
| Mains AC Supply voltage: |
230V AC (+10% / -15%) 120V AC (+10% / -15%) |
| Mains AC Supply frequency: | 47-63 Hz |
| Power supply DC rating: | 30V DC, 400W |
| Battery voltage: | 24VDC |
| Battery charge current: | 1.1A (max) |
| Battery capacity: | 2 x 12Ah, 12VDC sealed lead acid (max) |
| ALARM CIRCUITS (SCM-ACM) | |
| Output voltage: | 24VDC nominal |
| Max. alarm circuit current: | 2 x 500mA (max) |
| Max. line impedance: | 3.6Ω (1.8Ω per core) |
| Wiring class: | Class B [Power limited & Supervised] |
| Special applications: | Auxiliary 24VDC Output [Power limited & Unsupervised] |
| DETECTION LOOP (SCM-LCM) | |
| Circuit voltage: | 28V + 9V Data (Nominal) |
| Max. loop current: | 450mA |
| Max. loop capacity: | 250 Addresses |
| Max. loop resistance: | 25Ω per core @ 200mA / 10Ω per core @ 450mA |
| Max. loop capacitance: | 500nF |
| TERMINATION BOARD RELAY OUTPUTS | |
| Alarm: | (C,NO,NC) Contact rating: 125VAC @ 0.5A / 30VDC @ 1A |
| Fault: | Normally Energised (C,NO,NC) Contact rating: 125VAC @ 0.5A / 30VDC @ 1A |
| NETWORK | |
| Max. network size: | 64 nodes |
| Max. distance between nodes: | 1km |
| SOFTWARE | |
| Max. software zones: | 254 zones |
| Max. event log: |
8032 events |
| Software programming: |
Touchscreen LCD or Smart Configurator PC software |
| DISPLAY | |
| LCD: | 4.3” Resistive touch screen. 480 x 272 pixel resolution |
| LED indicators: | 1 Red (1 x Alarm), 1 Green (Power), 10 Yellow (1 x Sounder Active, 1 x Sounder Fault, 1 x Fault, 1 x Relay Delay, 1 x Controls Active, 1 x General Disablement, 1 x General Test, 1 x Sounder Disablement, 1 x Sounder Delay, 1 x System Fault) |
| Button controls: |
Stop Sounders, Silence Buzzer, Scroll Display, Reset, Start Sounders |
| Cable entries: |
34 |
| Max. module capacity: |
6 |
| Operating temperature: |
-5°C (23°F) to 49°C |
| Relative humidity: | 93% Non-Condensing |
| Standard: | EN54-2 & EN54-4 |
