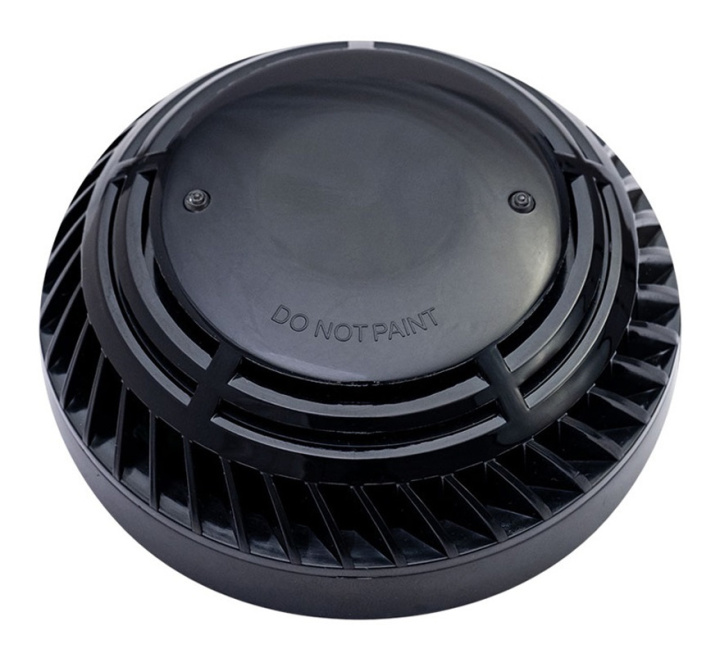

Global Fire ZEOS Addressable Optical Smoke Detector (Black) (ZEOS-AD-SBLK)
SKU
ZEOS-AD-S(BLK)
£39.05
£32.54
Global Fire ZEOS Addressable Optical Smoke Detector (Black) (ZEOS-AD-SBLK)
- Buy 10 for £38.44 £32.03 each and save 2%
- Buy 20 for £37.24 £31.03 each and save 5%
In Stock
Product Details for Global Fire ZEOS Addressable Optical Smoke Detector (Black) (ZEOS-AD-SBLK)
Global Fire Equipment's ZEOS-AD-S-BLK is a high quality, black, addressable photoelectric smoke detector with advanced detection and communication protocols.
The ZEOS-AD series of analogue addressable detectors have been designed to be fully compatible with GFE’s addressable fire alarm control panels:
- JUNIOR
- JUNO NET
- CHAMELEON range: GEKKO, OCTO+ and G-One
Certified to EN54-5 and EN54-7 the ZEOS-AD series detectors are available in optical, heat and combined smoke/heat detector versions. Optionally they can be fitted with a short-circuit loop isolator.
Key Features of the ZEOS-AD-S(BLK) |
|---|
|
> Compatible with Global Fire Equipment's addressable fire alarm control panels, JUNIOR, JUNO NET, GEKKO, OCTO+ and G-One
> Dual polling LEDs with 360º visibility > Advanced detection digital communication protocols > Insect protection with metallic strips > Easy installation and maintenance > Sleek low-profile housing > SMD circuit board design > High quality and reliability guaranteed |
| Brand | Global Fire Equipment |
|---|---|
| Manufacturer Part No. | ZEOS-AD-S(BLK) |
| Primary Power Source | 24V DC |
| System Type | Addressable |
| Protocol Compatibility | GFE ZEOS |
| Sensor Type | Optical |
| Detectable Medium | Smoke |
| Colour | Black |
| Warranty | 3 Years |
Write Your Own Review
FAQ’s for Global Fire ZEOS Addressable Optical Smoke Detector (Black) (ZEOS-AD-SBLK)
No questions yet. Be the first to ask the question!
Product Specification for Global Fire ZEOS Addressable Optical Smoke Detector (Black) (ZEOS-AD-SBLK)
| Product code: | ZEOS-AD-S-BLK |
| Dimensions: | H:50mm x D:100mm (base included) |
| Supply voltage: | Loop powered - 17V to 30V DC |
| Current - Quiescent/surge: |
450 uA max. |
| Current - device in alarm: |
4 mA - Alarm LED illuminated |
| Sensitivity: | According to EN54-5 and EN54-7 |
| Cable size: |
0.5 - 2.5 mm2 |
| Reset/start-up times: |
20 seconds max. |
| IP rating/colour/case material: | IP20 / Black/ ABS |
| Normal/transient oper. temp: |
0oC to +50oC / -10oC to +85oC |
| Humidity: | 95% RH Non-condensing |
| Weight: | 92g (144g including base) |
|
For EN54-13 compliance, please check the control panel manual specifications |
|
