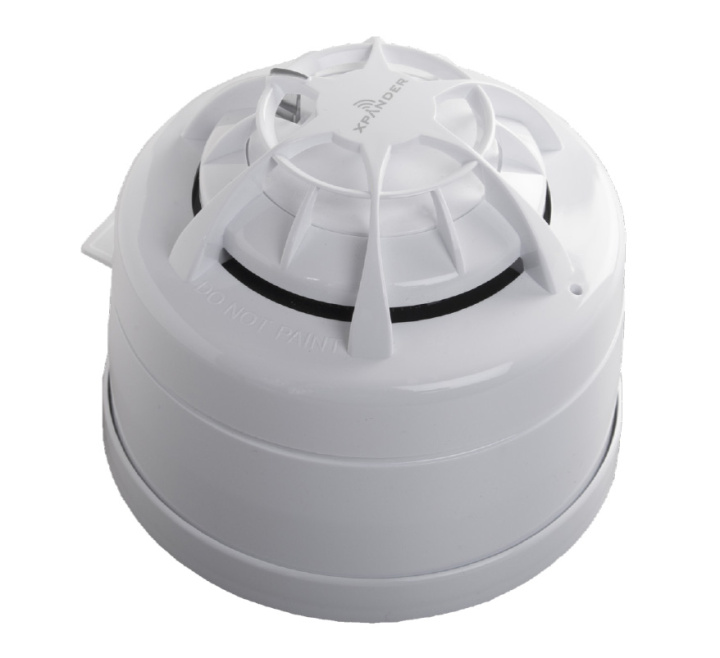

Apollo XPander Multisensor Detector and Mounting Base (XPA-CB-13032-APO)
Unavailable
Product Details for Apollo XPander Multisensor Detector and Mounting Base (XPA-CB-13032-APO)
The XPander multisensor smoke detector is a thermally enhanced smoke detector and as such will not give an alarm from heat alone. It is a development of the XPander optical detector and goes further in its capabilites of fire detection.
Multisensor detectors are recognised as good detectors for general use but are additionally more sensitive to fast burning, flame fires - including liquid fires - than optical detectors.
They can be readily used instead of optical smoke detectors but shoul;d be used as the detector of choice for areas where the fire risk is likely to include heat at an early stage in the development of the fire.
As with XPander optical smoke detectors the increased reliability of detection is combined with high immunity to false alarms.
Although the XPander multisensor detector relies on both smoke and heat sensors it is not possible to switch from smoke detection to heat detection.
Photo-electric detection of light scattered by smoke particles over a wide range of angles. The optical arrangement comprises an infra-red emitter with a prism and a photo-diode at 90° to the light beam with a wide field of view, heat sensitive thermistor. The detector's microprocessor uses algorithms to process the sensor readings.
Base Sold Seperately!
Key Features of the XPA-CB-13032-APO |
|---|
|
> Modern styling
> Wireless addresses seen by control panel as normal addresses > Radio base with wireless circuitry and battery compartment > Chamber designed to inhibit dirt penetration and thus reduce false alarms > Automatic drift compensation with DirtAlert™ warning > Algorithms for transient alarm rejection > FasTest™ reduces time taken to test detectors > Remote test facility > 3-5 years battery life |
| Brand | Apollo Fire Detectors |
|---|---|
| Manufacturer Part No. | XPA-CB-13032-APO |
| Primary Power Source | Longlife Batteries (Lithium) |
| System Type | Wireless |
| Protocol Compatibility | Apollo XP95, Apollo Discovery, Apollo CoreProtocol |
| Sensor Type | Combined Optical and Thermistor |
| Detectable Medium | Smoke, Heat |
| Colour | White |
| Warranty | 10 Years |
FAQ’s for Apollo XPander Multisensor Detector and Mounting Base (XPA-CB-13032-APO)
Product Specification for Apollo XPander Multisensor Detector and Mounting Base (XPA-CB-13032-APO)
| Manufacturer: | Apollo |
| Product Code: | XPA-CB-13032 |
| Supply Voltage: | Regulated 3V from radio base |
| Sampling Frequency: | Once every 4 seconds |
| Alarm Indicator: | Integral indicator with 360° visibility |
| Material: | Detector and base moulded in white polycarbonate |
| Dimensions: | 100mm (D) x 50mm (H)(105mm (D) x 80mm (H) In Base) |
| Weight: | 100g (500g In Base) |
| Operating Temperature: | - 10°C to + 50°C |
| Humidity: | 0% to 95% relative humidity (no condensation) |
| Wind Speed: | Unaffected by Wind |
| Atmospheric Pressure: | Insensitive to pressure |
| IP Rating to EN60529:1992: | 23D |
| Electromagnetic Compatibility: | The detector meets the requirements of BS EN 50 081-1 for emissions and BS EN50 130-4 for susceptibility. CE marked. |
