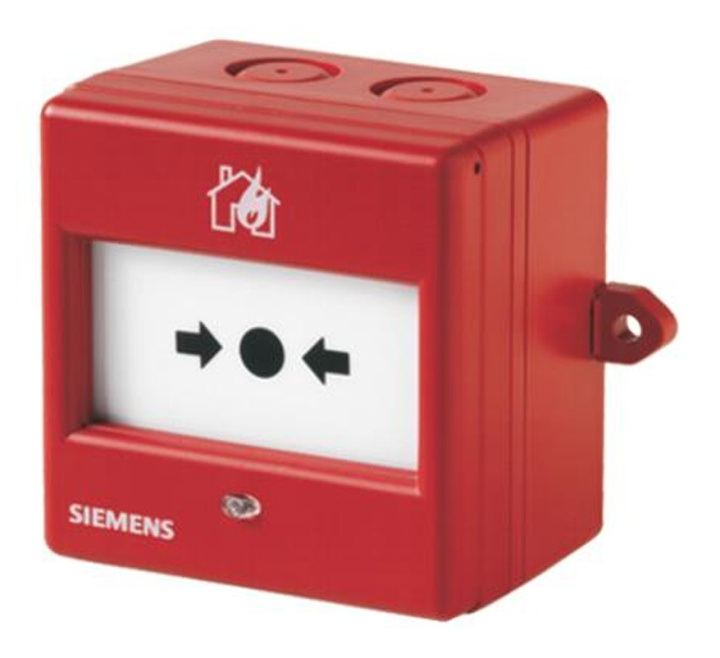

Siemens FDM226-RG Cerberus PRO IP66 Weatherproof Manual Call Point with Glass Element (A5Q00013435)
SKU
A5Q00013435
£75.76
£63.13
Siemens FDM226-RG Cerberus PRO IP66 Weatherproof Manual Call Point with Glass Element (A5Q00013435)
Available to Order
This item is not currently in stock at our main warehouse, but it is available to backorder or may be sent directly from the manufacturer. Contact us for lead time.
Product Details for Siemens FDM226-RG Cerberus PRO IP66 Weatherproof Manual Call Point with Glass Element (A5Q00013435)
The Siemens FDM226-RG is for immediate manual actuation of a fire alarm. For indoor and outdoor applications. Direct alarm actuation by pushing in the glass insert. By replacing the glass insert the pushbutton is reset and the device is ready for operation again. For surface- and recess-mounted feed lines in easily accessible places.
Key Features of the A5Q00013435 |
|---|
|
> IP66 rated weatherproof housing
> Integrated line separator: The defective part on the detector line is located by the fire control panel and isolated between two FDnet/C-NET devices > Built-in alarm indicator (LED) > Address automatically issued during commissioning > Protected electronics > Connection terminal DBZ1190-AB (accessory) can be mounted if shielded cables are used |
| Brand | Siemens |
|---|---|
| Manufacturer Part No. | FDM226-RG |
| Product Series | Cerberus PRO |
| Primary Power Source | 24V DC |
| System Type | Addressable |
| Protocol Compatibility | Siemens Cerberus |
| Colour | Red |
| Warranty | 5 Years |
Write Your Own Review
FAQ’s for Siemens FDM226-RG Cerberus PRO IP66 Weatherproof Manual Call Point with Glass Element (A5Q00013435)
No questions yet. Be the first to ask the question!
Product Specification for Siemens FDM226-RG Cerberus PRO IP66 Weatherproof Manual Call Point with Glass Element (A5Q00013435)
| Operating voltage | DC 12…33 V |
| Operating temperature | -25…70 °C |
| Protection category | IP66 |
| Relative humidity | ≤95 % rel. (no condensation) |
| Standard | EN 54-11 , EN 54-17 |
| Dimensions (W x H x D) | 87 x 87 (113) x 57 mm |
| Quiescent current | 180 μA |
| Storage temperature | -30...+75 °C |
| Terminal block | 0,28…1,5 mm² |
| Communication protocol | FDnet/C-NET |
| Color | Flame red, ~RAL 3000 |
| System compatibility | FDnet → FS20, AlgoRex, SIGMASYS C-NET → FS720 |
| Number of addresses | 1 |
