Vimpex Sycall Reset Glow Manual Call Point - Red - Weatherproof (SYW-RS01)
- Buy 10 for £65.02 £54.18 each and save 2%
Product Details for Vimpex Sycall Reset Glow Manual Call Point - Red - Weatherproof (SYW-RS01)

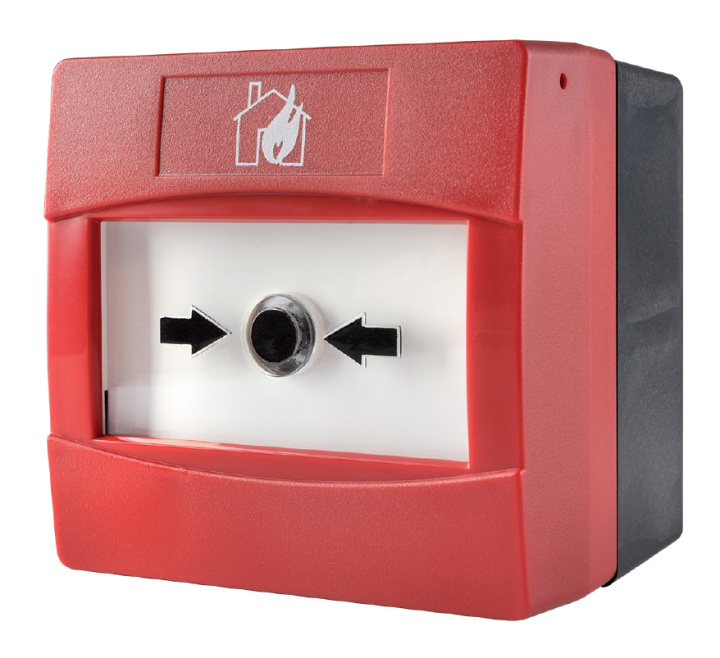

The Vimpex Sycall Reset-Glow series presents a line of resettable manual call points that replicate the sensation of breaking glass. These call points offer users the advantages of a resettable operating element, along with environmental benefits. The weatherproof variant is IP67-rated, ensuring protection against various weather conditions. Sycall call points are easily recognisable by the alarm flag that emerges upon activation. Additionally, the Series 01 model features an optional in-built LED ring that illuminates the central operating window when it is operated.
Key Features of the SYW-RS01 |
|---|
|
> Weatherproof
> Red, surface mounted > 'Burning House' logo on front > Mimics the feel of breaking glass but is a resettable element > Alarm flag rises into view upon activation > Optional in-built illuminated LED ring in central operating window > Photoluminescent pigment in white operating window glows for up to 8 mins allowing easy location in low light conditions > Easy to install, easy to reset |
| Brand | Vimpex |
|---|---|
| Manufacturer Part No. | SYW-RS01 |
FAQ’s for Vimpex Sycall Reset Glow Manual Call Point - Red - Weatherproof (SYW-RS01)
Product Specification for Vimpex Sycall Reset Glow Manual Call Point - Red - Weatherproof (SYW-RS01)
| Dimensions: |
W:88mm x H:87mm x D:30mm |
| Maximum Voltage: | 30 V dc |
| Minimum Voltage: (Note: LED may be low output or not operate below minimum voltage) |
5 V if LED with R1 is chosen |
| Operating Current: |
Non activated: 0 mA |
| Cable Termination: |
0.5 2.5mm2 |
| IP Rating: | IP67 |
| Colour: | Red |
| Mount | Surface |
| Operating Temperature: | -30o to +70oC |
