Global Fire VULCAN 2 Addressable Base Beacon with Isolator (VULCAN2-ABI)
SKU
VULCAN2-ABI
£37.62
£31.35
Global Fire VULCAN 2 Addressable Base Beacon with Isolator (VULCAN2-ABI)
- Buy 10 for £37.04 £30.87 each and save 2%
- Buy 20 for £35.89 £29.91 each and save 5%
Available on Backorder
This item is not currently in stock, but it is available to backorder. Contact us for lead time.
Product Details for Global Fire VULCAN 2 Addressable Base Beacon with Isolator (VULCAN2-ABI)

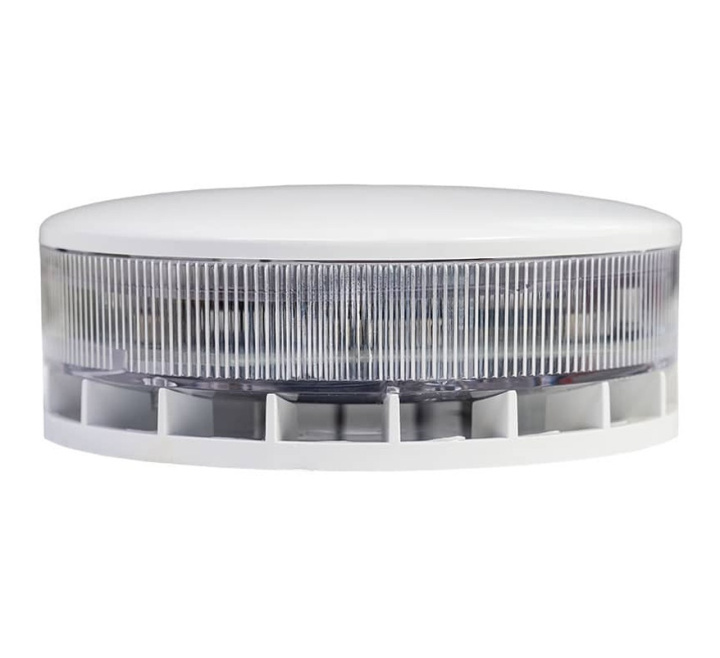

The Global Fire VULCAN2-ABI is an addressable beacon base that can be configured as a shadow beacon or auxiliary beacon. Incorporates a loop isolator. Up to 96 devices can be connected to a single loop depending on loop loading.
Key Features of the VULCAN2-ABI |
|---|
|
> Addressable Base Beacon, white
> Incorporates Isolator > Configure to operate in either shadow or aux modes > Up to 64 beacon devices can be connected to a single loop (depending on loop loading) > Dip-switch address setting > Tone and mode selection via a jumper > Adjustable sound > Optional lid available separately |
| Brand | Global Fire Equipment |
|---|---|
| Manufacturer Part No. | VULCAN2-ABI |
| Primary Power Source | 24V DC |
| System Type | Addressable |
| Protocol Compatibility | GFE ZEOS |
| Colour | White |
| Warranty | 10 Years |
Write Your Own Review
FAQ’s for Global Fire VULCAN 2 Addressable Base Beacon with Isolator (VULCAN2-ABI)
No questions yet. Be the first to ask the question!
Product Specification for Global Fire VULCAN 2 Addressable Base Beacon with Isolator (VULCAN2-ABI)
| Product code: | VULCAN2-ABI |
| Dimensions: |
D: 110mm x H:50mm (incl. base) |
| Supply voltage: |
Loop powered - 20V to 30V DC |
| Loop Current - Quiescent: |
430 uA & 550 uA max. with isolator |
| Loop current - Beacon: | 2.7 mA |
| Reset/start-up times: |
20 seconds max. |
| Protection category: | IP21C - Type A - Indoor use |
| Operation temperature: | -10oC to +55oC |
| Max. cable size: | 0.5 - 2.5mm2 |
| Max. humidity: | 95% RH Non-Condensing |
| Colour / case material: | White / ABS - Transparent PC |
| Weight: | 144g with lid |
