Siemens FDS225-R Cerberus PRO Wall Voice Sounder (Red) (No Base) (S54364-F3-A1)
SKU
S54364-F3-A1
£73.67
£61.39
Siemens FDS225-R Cerberus PRO Wall Voice Sounder (Red) (No Base) (S54364-F3-A1)
Available to Order
This item is not currently in stock at our main warehouse, but it is available to backorder or may be sent directly from the manufacturer. Contact us for lead time.
Product Details for Siemens FDS225-R Cerberus PRO Wall Voice Sounder (Red) (No Base) (S54364-F3-A1)

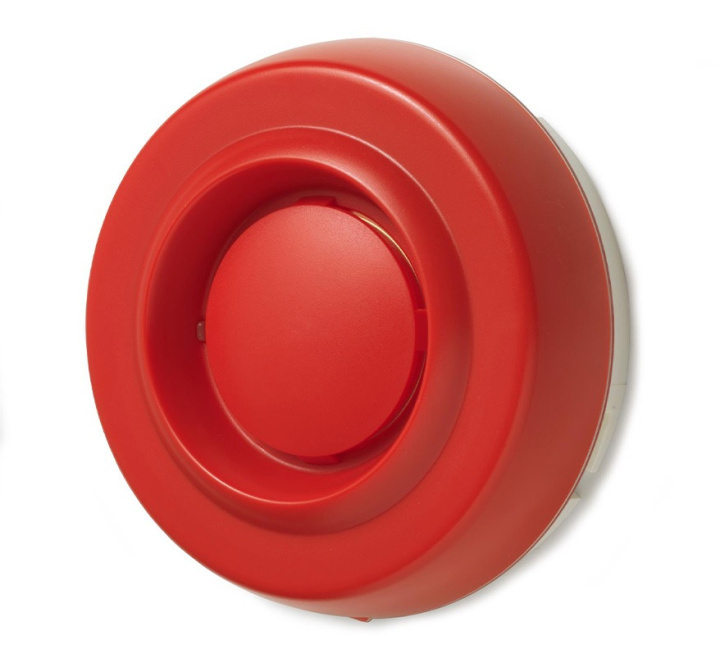

Siemens Voice Sounder in Red housing, requires base FDB226-R or FDB227-R
The device provides an alarm in an addressed fire detection system and activates an acoustic alarm signal with a voice message in the event of a fire alarm.
It is mounted on the wall e. g. along escape routes, corridors, staircases and offices. The sound level, the tones and the voice messages are adjustable, the devices are synchronized. 15 languages are integrated in the device, each voice message can be emitted in two consecutive languages.
Supply and communication via FDnet/C-NET, no auxiliary power needed. The device automatically monitors its acoustic function.
The base must be ordered separately.
Key Features of the S54364-F3-A1 |
|---|
|
> Red
> Provides an alarm in an addressed fire detection system FS20/FS720 > Activates an acoustic signal in the event of a fire alarm > Can emit pre-recorded standard voice messages > Each voice message can be emitted in two consecutive languages > 16 tones, 15 languages ex-factory > Has its own device address and can be configured independently > Supply and communication via FDnet/C-NET, no auxiliary power needed > Automatically monitors its acoustic function > Base must be ordered separately |
| Brand | Siemens |
|---|---|
| Manufacturer Part No. | FDS225-R |
| Product Series | Cerberus PRO |
| Primary Power Source | 24V DC |
| System Type | Addressable |
| Protocol Compatibility | Siemens Cerberus |
| Warranty | 5 Years |
Write Your Own Review
FAQ’s for Siemens FDS225-R Cerberus PRO Wall Voice Sounder (Red) (No Base) (S54364-F3-A1)
No questions yet. Be the first to ask the question!
Product Specification for Siemens FDS225-R Cerberus PRO Wall Voice Sounder (Red) (No Base) (S54364-F3-A1)
| Product: | Siemens FDS225-R Sounder in red housing |
| Product code: | S54364-F3-A1 |
| Dimensions: |
Ø:116mm x D:42.7mm |
| Standard: | EN 54-3 , EN 54-17 |
| Operating voltage: | DC 12 - 33V |
| Operating current: | 4mA (tone/voice activated) |
| Quiescent current: | 250 μA |
| Sound intensity: |
71 - 94 dB(A) |
| Cable capacity: | 0.2 - 2.5mm2 |
| Operating temperature: | -25 to +70 °C |
| Storage temperature: | -30 to +75 °C |
| Protection category: | IP33C; IP65 with base deep |
| Relative humidity: | ≤95 % rel. |
| No. of sounds: |
16 |
| No. of addresses: | 1 |
| System compatibility: |
