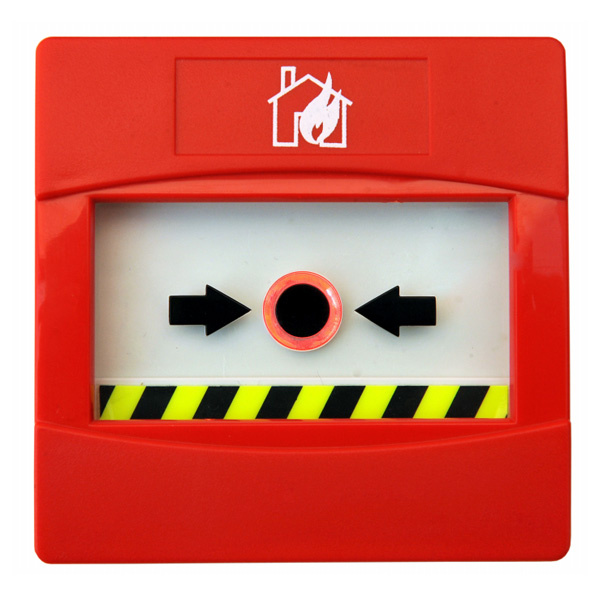

Vimpex Sycall Reset Glow Manual Call Point - Red (SY-RD01)
SKU
SY-RD01
£10.02 £8.35
The Vimpex Sycall Reset-Glow series of manual call points replicate the sensation of breaking glass. They require no opening for testing or resetting. With no accessible moving parts, these manual call points (MCPs) are exceptionally reliable and robust. They feature a warning indicator at the bottom of the window upon activation and an optional built-in LED ring illuminates the central operating window of the Series 01. Resetting the unit is as easy as using a special key, allowing for immediate reuse.
- Buy 10 for £9.86 £8.22 each and save 2%
- Buy 20 for £9.71 £8.09 each and save 3%
- Buy 50 for £9.55 £7.96 each and save 5%
The Vimpex Sycall Reset-Glow series of resettable manual call points mimics the feel of breaking glass and once installed will never need to be opened for test or reset.
There are no moving parts which are accessible to the engineer or the user meaning the manual call-points (MCPs) are highly reliable and robust.
The call point features a warning indicator which appears at the bottom of the window on activation and an optional in-built LED ring which illuminates the central operating window of the Series 01 when operated.
The unit is then simply reset with a special key and is ready again for immediate use.
| Key Features |
|---|
| > Suitable for both surface and flush mounting > Clean contact or choice of 470 Ωr 680 Ω series resistors in the same model > Aesthetically appealing design > Approved to EN 54 Part 11 (Red Only) > Resettable Element > Optional highly visible LED Light ring when activated > Luminescent element visible for up to 8 minutes |
| Manufacturer | Vimpex |
|---|---|
| MPN | SY-RD01 |
Write Your Own Review
Sort By:
No questions yet. Be the first to ask the question!
| Maximum Voltage | 30 V dc |
| Minimum Voltage* | 4.5 V dc if LED with R1 is chosen 6.0 V dc if LED if R2 is chosen |
| Current Rating (non activated) | 0 mA |
| Current Rating (activated) | 18 mA @ 12 V dc -R1 13 mA @ 12 V dc -R2 45 mA @ 24 V dc -R1 31 mA @ 24 V dc -R2 |
| Cable Termination | 0.5 2.5 mm |
| Operating Temperature | -30 to +70 C |
| IP Rating | IP42 |
| Material | ABS/Polycarbonate/PA6+Glass Fibre |
*LED may be low output or not operate below minimum voltage
