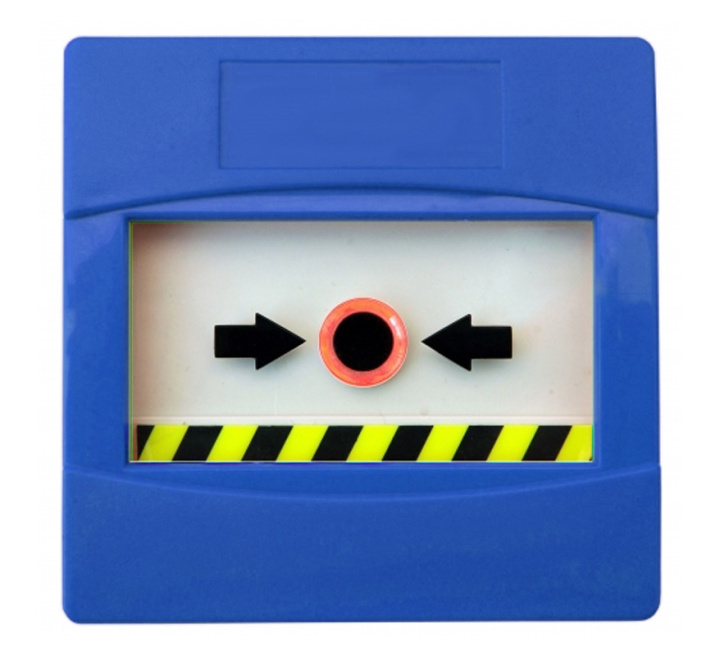

Vimpex Sycall Reset Glow Manual Call Point - Blue (SY-BD01)
SKU
SY-BD01
£13.94 £11.62
The Vimpex Sycall Reset-Glow series features resettable manual call points that mimic breaking glass. They don't need to be opened for testing or resetting. With no accessible moving parts, these MCPs are reliable and durable. A warning indicator and optional LED ring enhance visibility. Resetting is done with a special key for immediate reuse.
The Vimpex Sycall Reset-Glow series offers resettable manual call points that replicate the sensation of breaking glass. Once installed, they never require opening for testing or resetting.
These manual call points (MCPs) boast a design without accessible moving parts, ensuring their reliability and durability. Upon activation, a warning indicator appears at the window's bottom and an optional built-in LED ring can illuminate the central operating window of the Series 01.
To reset the unit, a special key is used, allowing for immediate readiness and reuse.
| Key Features |
|---|
| > Suitable for both surface and flush mounting > Clean contact or choice of 470 Ωr 680 Ω series resistors in the same model > Aesthetically appealing design > Approved to EN 54 Part 11 (Red Only) > Resettable Element > Optional highly visible LED Light ring when activated > Luminescent element visible for up to 8 minutes |
| Manufacturer | Vimpex |
|---|---|
| MPN | SY-BD01 |
Write Your Own Review
Sort By:
No questions yet. Be the first to ask the question!
| Maximum Voltage | 30 V dc |
| Minimum Voltage* | 4.5 V dc if LED with R1 is chosen 6.0 V dc if LED if R2 is chosen |
| Current Rating (non activated) | 0 mA |
| Current Rating (activated) | 18 mA @ 12 V dc -R1 13 mA @ 12 V dc -R2 45 mA @ 24 V dc -R1 31 mA @ 24 V dc -R2 |
| Cable Termination | 0.5 2.5 mm |
| Operating Temperature | -30 to +70 C |
| IP Rating | IP42 |
| Material | ABS/Polycarbonate/PA6+Glass Fibre |
*LED may be low output or not operate below minimum voltage
