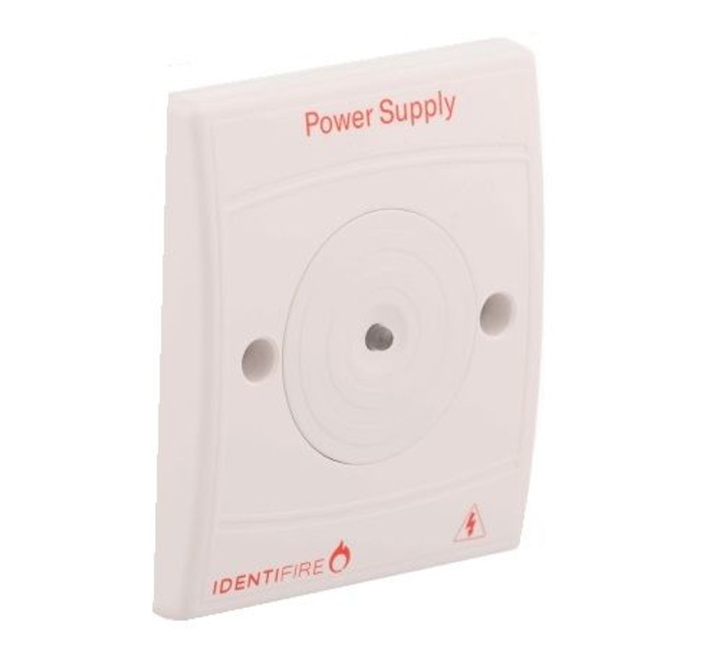

Vimpex Identifire Single Gang PSU 12/24V, White, Flush (10-3010WFG-S)
SKU
10-3010WFG-S
£37.66
£31.38
Vimpex Identifire Single Gang PSU 12/24V, White, Flush (10-3010WFG-S)
- Buy 10 for £37.08 £30.90 each and save 2%
Available to Order
This item is not currently in stock at our main warehouse, but it is available to backorder or may be sent directly from the manufacturer. Contact us for lead time.
Product Details for Vimpex Identifire Single Gang PSU 12/24V, White, Flush (10-3010WFG-S)
The Vimpex 10-3010WFG-S Identifire switch mode power supply is a super-compact device, which is configured in a standard Identifire single gang form making it compatible with the Identifire range of the devices and accessories.
The unit is capable of supplying either 12 or 24 Vdc making it suitable for a wide range of applications across the fire, security, and controls sectors. Identifire sounders and visual indicators and many other low current products.
Used in combination with the Identifire range of relays and key switches the unit can be deployed in higher current and mains voltage applications
Key Features of the 10-3010WFG-S |
|---|
|
> Works at 12 or 24 V dc selectable via link
> White > Flush mounted > Green LED power indicator > PCB cover protects users from mains voltage |
| Brand | Vimpex |
|---|---|
| Manufacturer Part No. | 10-3010WFG-S |
Write Your Own Review
FAQ’s for Vimpex Identifire Single Gang PSU 12/24V, White, Flush (10-3010WFG-S)
No questions yet. Be the first to ask the question!
Product Specification for Vimpex Identifire Single Gang PSU 12/24V, White, Flush (10-3010WFG-S)
| Product: | Vimpex Identifire Single Gang PSU |
| Product code: | 10-3010WFG-S |
| Dimensions: | W:89mm x H:100mm x D:35mm |
| Output voltage: |
12/24 V DC |
| Output current (dc): |
800 / 400 mA |
| Input voltage (ac): |
110 - 250V |
| Typical efficiency: |
85% |
| Status LED: |
Green (PSU operating) |
| Output rating: |
Continuous |
| Load rating (Ω) resistive: |
15/60 |
| Operating temperature: | -20 to +50 °C |
| Mounting method: | Flush |
| Colour: | White |
