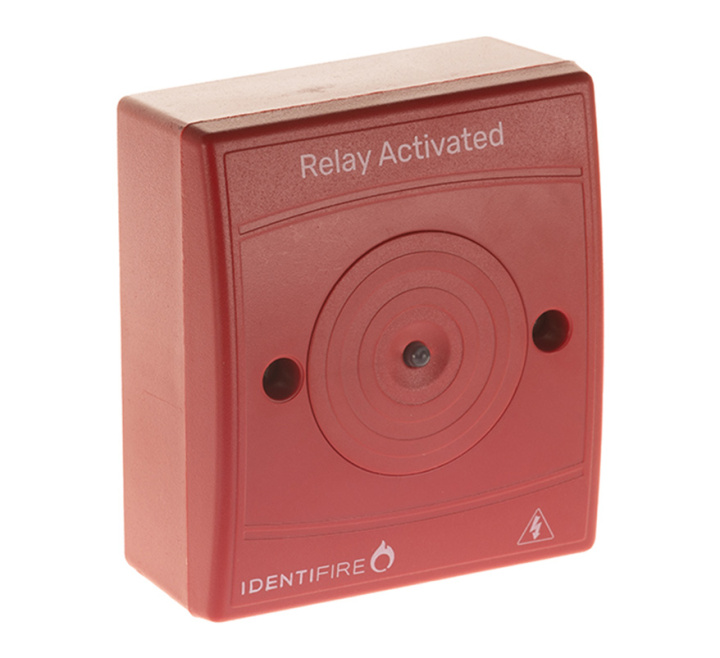

Vimpex Identifire Aux 24V Relay 2A, Red, Surface Mount (10-2610RSR-S)
SKU
10-2610RSR-S
£14.76 £12.30
Vimpex Identifire Aux 24V Relay 2A, Red, Surface Mount (10-2610RSR-S)
- Buy 10 for £14.53 £12.11 each and save 2%
Product Details for Vimpex Identifire Aux 24V Relay 2A, Red, Surface Mount (10-2610RSR-S)
The Vimpex 10-2610RSR-S Identifire Auxiliary Relay is a convenient way to control third-party components and system ancillaries. Ideal for a wide range of applications including controlling door hold open devices, access control interfacing, smoke ventilation and general switching of mains voltage and higher current equipment.
A switching capability of up to 230 V ac combined with a dual pole switching capability, allows for the safe control of mains voltage equipment.
Key Features of the 10-2610RSR-S |
|---|
| > Surface mounted > 2A Switching > Versatile backbox featuring 10 fixing points to allow easy mounting > Incorporates 4 x round 20 mm knockouts and 1 x rectangular for surface conduit > Ideal for new or retrofit projects |
| Brand | Vimpex |
|---|---|
| Manufacturer Part No. | 10-2610RSR-S |
Write Your Own Review
FAQ’s for Vimpex Identifire Aux 24V Relay 2A, Red, Surface Mount (10-2610RSR-S)
No questions yet. Be the first to ask the question!
Product Specification for Vimpex Identifire Aux 24V Relay 2A, Red, Surface Mount (10-2610RSR-S)
| Trigger Voltage (Typical) | 24 V dc (2 A) |
| Trigger Current (Typical) | 23 mA |
| Contact Specification (Resistive) | 2 A @ 30 V dc |
| Humidity | 95% Non-Condensing |
| Housing Material | Fire Rated ABS |
| Temperature Range | -5° to +50° C |
| Colour | Red and White |
| Mounting Options | Flush/Surface |
| Environmental Rating | IP21 |
