Vimpex Identifire Multi-Tone Base Sounder with Cover (IDBTS-W)
- Buy 10 for £20.06 £16.72 each and save 2%
Product Details for Vimpex Identifire Multi-Tone Base Sounder with Cover (IDBTS-W)

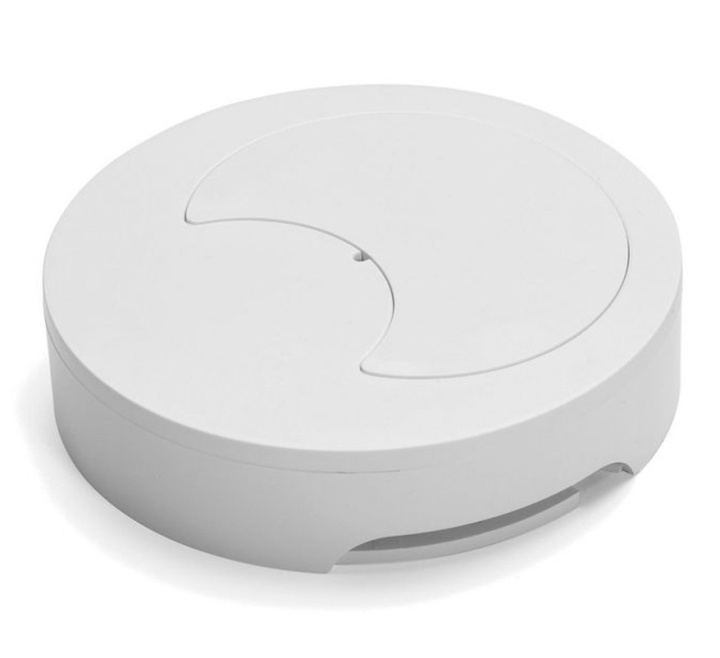

The Vimpex Multi-Tone Base Sounder (IDBTS-W) is the slimmest sounder in its class. It delivers true omni-directional sound output and is fully compatible with other sounders in the Identifire range. With 32 user-selectable tones, it covers a wide range including low frequencies, high frequencies and various international norms.
Tested and approved to EN 54 Part 3 standard, the Identifire Base Sounder seamlessly fits under most ceiling-mounted fire detectors. Alternatively, it can be mounted as a stand-alone unit using the front blanking plate. This versatile sounder incorporates all industry-standard frequency patterns, ensuring reliable performance in emergency situations.
Please Note: Detector shown in image is not included and is for illustrative purposes only.
Key Features of the IDBTS-W |
|---|
|
> 32 selectable tones
> EN 54-3 tested and fully approved in accordance with CPR > Slimmest profile in the industry > Low current consumption > Omni-directional sound > Front plate for stand-alone use available > Four selectable volume levels > Installer friendly terminals > Ceiling or wall mounted (wall mount only when used without a detector) > Robust and easily connected ‘two in two out’ 2.5 mm terminals |
| Brand | Vimpex |
|---|---|
| Manufacturer Part No. | IDBTS-W |
FAQ’s for Vimpex Identifire Multi-Tone Base Sounder with Cover (IDBTS-W)
Product Specification for Vimpex Identifire Multi-Tone Base Sounder with Cover (IDBTS-W)
| Dimensions: | ⌀ 102mm x D:23.9mm |
| Operating Voltage: | 18 - 30 V dc |
| Maximum Current Consumption: |
Bell & normal output strobe: 27 mA Bell & high output strobe: 47 mA |
| Tone Current Consumption (mA): |
See page 2 of datasheet |
| Sound Output (dBA Typ @ 1m): | See page 2 of datasheet |
| Tones Available: | See page 2 of datasheet |
| Environment Category: | Type A (Indoor) |
| Colour: |
White |
| Volume Control: | 1. Max 2. High (-6 dB(A)) 3. Medium (-12 dB(A)) 4. Low (-18 dB(A)) |
| Temperature Range: | -10o to +50oC |
