Vimpex Hydrosense Valve Relay, Surface Mount (HY-VRS)
SKU
HY-VRS
£26.41
£22.01
Vimpex Hydrosense Valve Relay, Surface Mount (HY-VRS)
- Buy 10 for £26.00 £21.67 each and save 2%
Available to Order
This item is not currently in stock at our main warehouse, but it is available to backorder or may be sent directly from the manufacturer. Contact us for lead time.
Product Details for Vimpex Hydrosense Valve Relay, Surface Mount (HY-VRS)

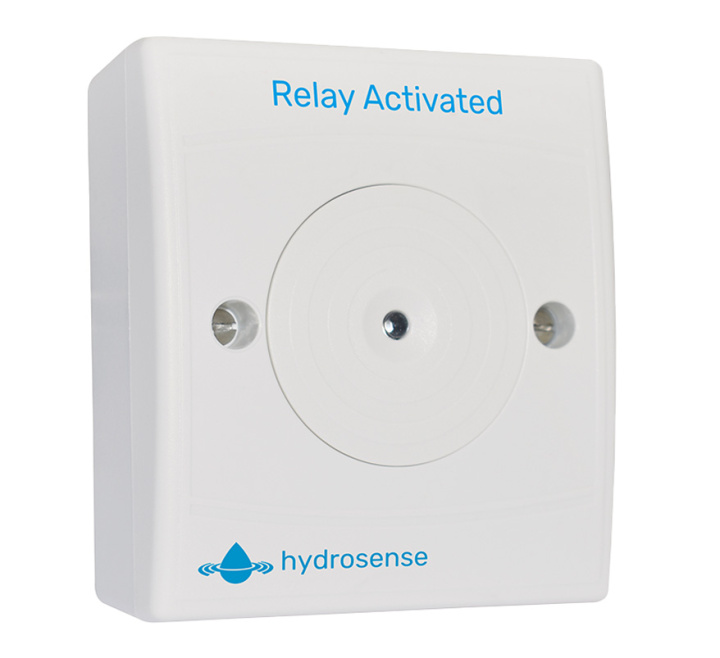

The Vimpex Hydrosense Valve Relay, Surface Mount (HY-VRS) provides integration between Hydrosense Control Panels and Water/ Flow Control equipment. Rated at 230 V ac and activated via 24 V dc input.
The Hydrosense Control Relay would typically be operated via the on-board panel alarm relay and power derived from either the panel auxiliary supply or a local 24 V PSU.
Key Features of the HY-VRS |
|---|
|
> Ideal for new or retrofit projects
> Can switch up to 230 Vac at 8A > Can be used to switch off Solenoid Valves > Versatile backbox featuring 10 fixing points for easy mounting > 4 x round 20 mm knockouts > 1 x rectangular knockout for surface conduit > Surface mounted |
| Brand | Vimpex |
|---|---|
| Manufacturer Part No. | HY-VRS |
Write Your Own Review
FAQ’s for Vimpex Hydrosense Valve Relay, Surface Mount (HY-VRS)
No questions yet. Be the first to ask the question!
Product Specification for Vimpex Hydrosense Valve Relay, Surface Mount (HY-VRS)
| Product: | Vimpex Hydrosense Valve / Control Relay, surface mount |
| Catalogue no.: | HY-VRS |
| Dimensions: | See attached datasheet |
| Operating voltage: | 24V dc |
| Current consumption: | 21mA @ 24V dc |
| Operating temperature: | -5oC to +50oC |
| Material: | Fire rated ABS |
| Operating humidity: | 95% non-condensing |
| Colour: | White, blue lettering, blue LED |
| Weight: | 0.06g |
