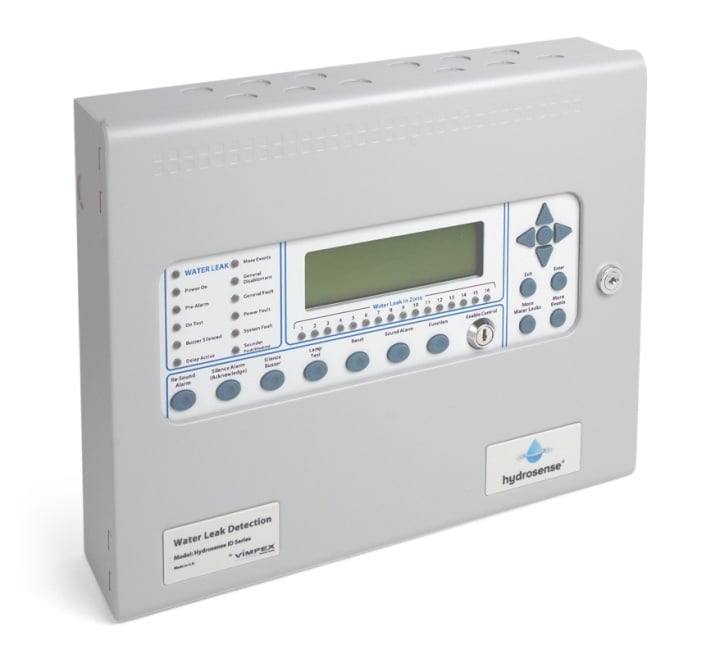

Vimpex Hydrosense ID 2 Loop Addressable Leak Detection Panel (IDAP-S-2-230)
SKU
IDAP-S-2-230
£2,264.76
£1,887.30
Vimpex Hydrosense ID 2 Loop Addressable Leak Detection Panel (IDAP-S-2-230)
Available to Order
This item is not currently in stock at our main warehouse, but it is available to backorder or may be sent directly from the manufacturer. Contact us for lead time.
Product Details for Vimpex Hydrosense ID 2 Loop Addressable Leak Detection Panel (IDAP-S-2-230)
Vimpex Hydrosense ID Dual Loop Addressable Leak Detection Panel 230 VAC (IDAP-S-2-230)
Hydrosense ID offers both linear and point detection solutions. Single and dual loop panels are available with each loop supporting a maximum of 127 addressable devices. Our highly versatile leak detection module will support up to 50m of Hydro-Wire or one Hydro-Probe per circuit, with two circuits available per device. Control panel configuration also allows each leak detection module to be allocated a location-specific name.
Key Features of the IDAP-S-2-230 |
|---|
|
> Addressable Water Leak Detection
> Dual loop control panel > Can support in excess of 500 Hydro-Probes and over 25,000m of Hydro-Wire > Control panel configuration allows each addressable device to be uniquely identified > Remote outputs fully configurable > RS485 panel expansion bus supporting up to 32 additional accessories > Cause and Effect output control via Loop Explorer 2 PC software > Fully monitored sounder circuits > Additional 8-Way relay board also available > Battery Standby > For larger, more complex installations |
| Brand | Vimpex |
|---|---|
| Manufacturer Part No. | IDAP-S-2-230 |
Write Your Own Review
FAQ’s for Vimpex Hydrosense ID 2 Loop Addressable Leak Detection Panel (IDAP-S-2-230)
No questions yet. Be the first to ask the question!
Product Specification for Vimpex Hydrosense ID 2 Loop Addressable Leak Detection Panel (IDAP-S-2-230)
| Product: | Vimpex Hydrosense ID 2 Loop Addressable Leak Detection Panel |
| Catalogue no.: | IDAP-S-2-230 |
| Dimensions: | L:385mm x H:310mm x D:90mm |
| Mains voltage: | 230Vac, 60Hz |
| Mains supply fuse: | 1.6A, 250 Vac |
| Power supply DC rating: | 24V, 3A |
| Aux 24V supply: | Fused @ 500mA |
| Battery size (max): | 12 Vdc / 9Ah (x2 for 24V standby) |
| Sounder output rating: | Fused at 1A each |
| Panel expansion bus: | RS485 |
| Finish: | Epoxy powder coated |
| Colour: | BS 00 A OS Grey - fine texture |
| IP rating: | IP30 |
| Weight: | 6 kg |
