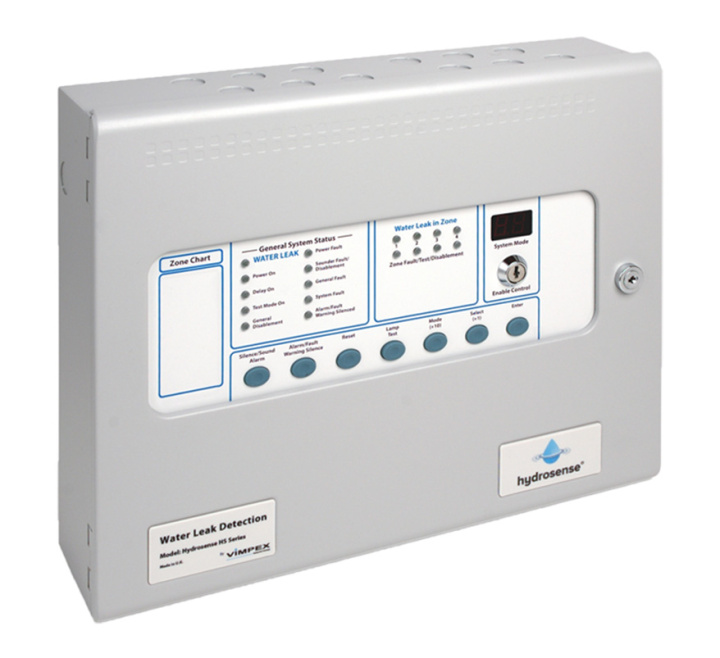

Vimpex Hydrosense HS 4 Zone Conventional Leak Detection Panel (HSCP-S-4-230)
SKU
HSCP-S-4-230
£626.11
£521.76
Vimpex Hydrosense HS 4 Zone Conventional Leak Detection Panel (HSCP-S-4-230)
Available to Order
This item is not currently in stock at our main warehouse, but it is available to backorder or may be sent directly from the manufacturer. Contact us for lead time.
Product Details for Vimpex Hydrosense HS 4 Zone Conventional Leak Detection Panel (HSCP-S-4-230)
Vimpex Hydrosense HS 4 Zone Conventional Leak Detection Panel (HSCP-S-4-230)
The Hydrosense HS conventional supports both linear and point detection with Hydrowire and Hydrosense Probes. Control Panel sizes range from two to eight detection zones, and each model includes two sounder circuits.
An Ancillary PCB can also be fitted to provide local plant control or BMS integration, via up to 8 zonal relay contacts Hydrosense HS is ideal for small to medium sized projects, with up to 50 metres of Hydro-Wire or 20 Hydro-Probes allowed per detection zone.
Key Features of the HSCP-S-4-230 |
|---|
|
> 4 Zone Panel
> Monitored alarm and detection circuits > Robust junction/connection boxes > Plug n play features > Easy to install/maintain > Up to 72hr battery standby > Common fault and alarm relay contacts available > Kits available > Up to 50m of Hydrowire on a zone > Up to 20 probes per zone > Suitable for small to medium sized projects > Ancillary PCB can be fitted for local plant control/BMS integration |
| Brand | Vimpex |
|---|---|
| Manufacturer Part No. | HSCP-S-4-230 |
Write Your Own Review
FAQ’s for Vimpex Hydrosense HS 4 Zone Conventional Leak Detection Panel (HSCP-S-4-230)
No questions yet. Be the first to ask the question!
Product Specification for Vimpex Hydrosense HS 4 Zone Conventional Leak Detection Panel (HSCP-S-4-230)
| Product: | Vimpex Hydrosense HS 4 Zone Conventional Leak Detection Panel |
| Catalogue no.: | HSCP-S-4-230 |
| Dimensions: | L:385mm x H:310mm x D:90mm |
| Mains supply: | 230 Vac (100W max) |
| Mains supply fuse: | 1.6A, 250 Vac |
| Output voltage: | 18.5 - 29V dc |
| Battery size (max): | 12 Vdc 7Ah (2 batteries) |
| Battery charge voltage: | 0.7A |
| Battery lead fuse: | 20mm, 3.15A |
| Dedicated sounder circuits: | 24Vdc, fused at 500mA |
| Relay contact rating: | 30V dc, 1A |
| Detection circuit EOL: | 6,800 Ohms, 0.5W |
| Sounder circuit EOL: | 10,000 Ohms, 0.25W |
| IP rating: | 30 |
| Construction: | 1.2mm mild steel |
| Finish: | Epoxy powder coated |
| Colour: | RAL 7047 Light Grey - Satin |
| IP rating: | IP30 |
