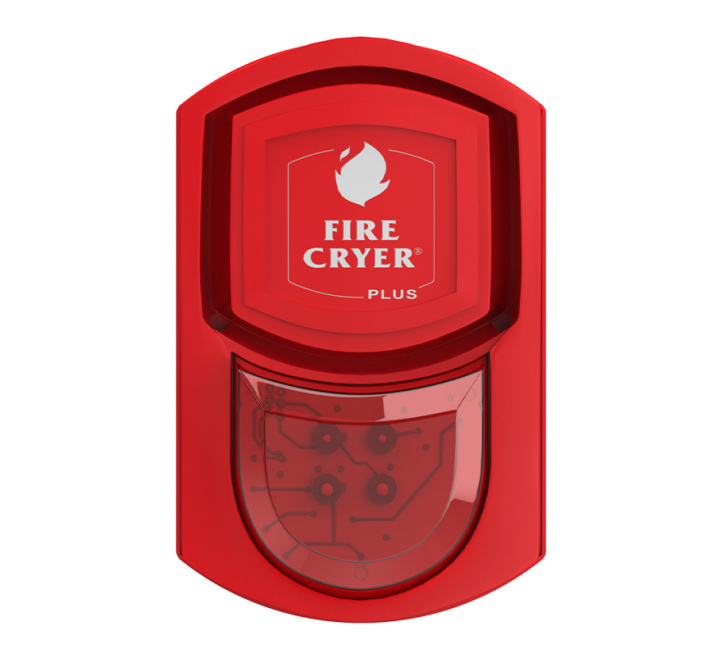

Vimpex Fire-Cryer Plus Voice Sounder Beacon - Red Body, Red Beacon, Shallow Base (FC3/A/R/R/S)
Product Details for Vimpex Fire-Cryer Plus Voice Sounder Beacon - Red Body, Red Beacon, Shallow Base (FC3/A/R/R/S)
The Vimpex FC3/A/R/R/S is a wall-mounted voice sounder beacon with a red body, red beacon and shallow mounting base.
The Vimpex Fire-Cryer® Plus is a versatile solution that can be easily retrofitted to existing installations without the need for special wiring. With fully synchronised operation and remarkably low current consumption, these units are an ideal replacement for electronic sounders or bells. They effectively broadcast clear messages in various situations, including evacuation, chemical spills, access notifications, security alerts and general information.
In scenarios that call for staged alarms or phased evacuations, separate message controllers can be utilised. These controllers enable the broadcast of up to seven different messages across multiple zones, using only two wires.
It's important to note that the strobe function is not intended to be the primary source of alarm and therefore has not been assessed for compliance with EN54-23 standards.
For convenience, users have the option to choose from pre-designed message sets tailored to specific industries or request custom messages as needed.
Key Features of the FC3/A/R/R/S |
|---|
|
> Red body, red beacon lens and LED
> Shallow mounting base > Sound Output - 100 dB(A) > Low current - average 20 mA > No special wiring, easily retro-fitted > Fully synchronised over multi-zones > Choose from industry-designed message sets or bespoke where required > 7 messages, switchable via user or I/O interface > Approved to EN 54 Part 3 |
| Brand | Vimpex |
|---|---|
| Manufacturer Part No. | FC3/A/R/R/S |
FAQ’s for Vimpex Fire-Cryer Plus Voice Sounder Beacon - Red Body, Red Beacon, Shallow Base (FC3/A/R/R/S)
Product Specification for Vimpex Fire-Cryer Plus Voice Sounder Beacon - Red Body, Red Beacon, Shallow Base (FC3/A/R/R/S)
| Dimensions | Standard Base: 85.6mm (width) x 134.0mm (height) x 56.9mm (depth) Standard Base+Strobe: 85.6mm (width) x 134.0mm (height) x 59.9mm (depth) |
| Operating voltage | 20-28 V dc |
| Current @ 24V dc |
Avg/Peak |
| Strobe Output |
Low 2 Cd High 6 Cd |
| Effective Sound Output (Typical) |
Alert Fast Sweep tone to BS5839 - 100dB(A)* Voice 95dB(A)** |
| Volume Adjustment (min to max)18dB(A) |
82 to 100 dB(A) |
| Weatherproofing | IP45 |
| Housing material |
ABS |
| Temperature range |
-25 °C to +70 °C |
| Colour | Red |
| Connections | Screw TB 2.5mm2 |
| Weight | 300g |
| *Tone output may vary depending on chosen sound **Voice output may vary due to the nature of human speech |
