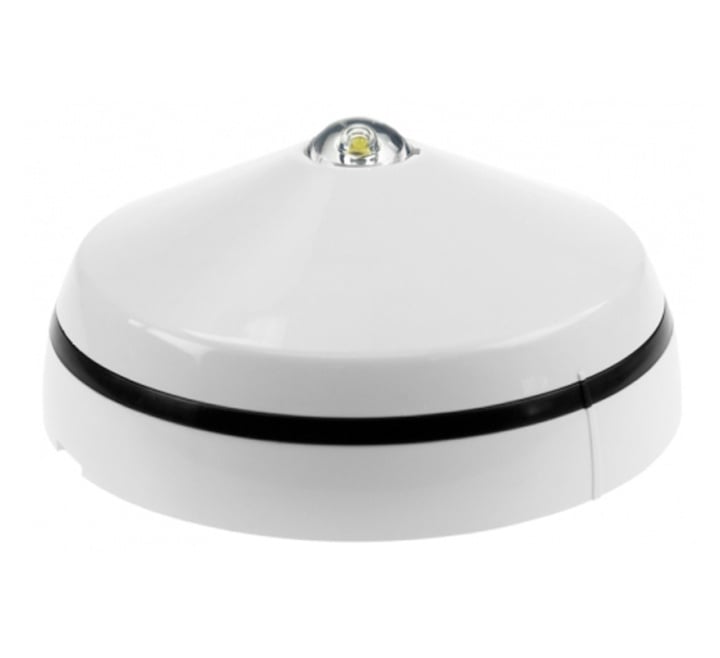

Vimpex VAD23 Conventional Ceiling Mounted VAD with Base - White C-3-7.5 (CBE1002-C)

SKU
CBE1002-C
£60.28 £50.23
The Vimpex VAD23™ (CBE1002-C) is a powerful ceiling-mounted Visual Alarm Device (VAD). It provides a primary warning signal, ideal for areas where sounders alone may not suffice. Installation is easy with the included standard detector base. It is third-party approved to EN 54-23, guaranteeing reliable performance. It carries a certified rating of C-3-7.5.
  • Buy 10 for £59.35 £49.46 each and save 2%
Available on Backorder This item is not currently in stock, but it is available to backorder. Contact us for lead time.

Product Details for Vimpex VAD23 Conventional Ceiling Mounted VAD with Base - White C-3-7.5 (CBE1002-C)

The Vimpex VAD23™ (CBE1002-C) is a powerful ceiling-mounted Visual Alarm Device (VAD). Designed to provide a primary warning signal, it is especially effective in areas where sounders alone may not be enough. It is mounted using a standard detector base which is included.

The VAD23™ - Ceiling Mounted VAD is third-party approved to EN 54-23 standard, ensuring reliable performance. It is certified with a rating of C-3-7.5.


Key Features of the CBE1002-C

> Low power, high output LED technology
> Coverage radius of 7.5 m when installed at a ceiling height of 3m
> Flash rate of 0.5 Hz (1 every 2 seconds)
> Anti-tamper lock to prevent unauthorised removal
> 3rd Party Approved to EN 54-23
> Easy central cable entry
> 5 Year Warranty
> Utilises a standard detector base (Included)
> High intensity clear LED

More information about Vimpex VAD23 Conventional Ceiling Mounted VAD with Base - White C-3-7.5 (CBE1002-C)

More Information
Brand Vimpex
Manufacturer Part No. CBE1002-C
Write Your Own Review
You're reviewing:Vimpex VAD23 Conventional Ceiling Mounted VAD with Base - White C-3-7.5 (CBE1002-C)
Your Rating

Datasheets and Manuals for Vimpex VAD23 Conventional Ceiling Mounted VAD with Base - White C-3-7.5 (CBE1002-C)

FAQ’s for Vimpex VAD23 Conventional Ceiling Mounted VAD with Base - White C-3-7.5 (CBE1002-C)

Loading...



Ask Question

All questions will be displayed after moderation.

No questions yet. Be the first to ask the question!

Product Specification for Vimpex VAD23 Conventional Ceiling Mounted VAD with Base - White C-3-7.5 (CBE1002-C)

Dimensions: W:110mm x H:110mm x D:50mm
(includes 15mm base)
Operating Voltage: 15 - 40 V dc
Operating Current: 10 mA at 24 V dc
IP Rating:
21C, Type A (Indoor)
Unit Weight:
120g
LED Colour: White
Rating: C-3-7.5
Temperature Range (no icing): -10o to +55oC, 95% RH
