Vimpex Banshee EXCEL LITE Conventional Sounder LED Beacon - Red Body, Red Lens (958CHL1000)
- Buy 10 for £58.25 £48.54 each and save 2%
In Stock
Product Details for Vimpex Banshee EXCEL LITE Conventional Sounder LED Beacon - Red Body, Red Lens (958CHL1000)

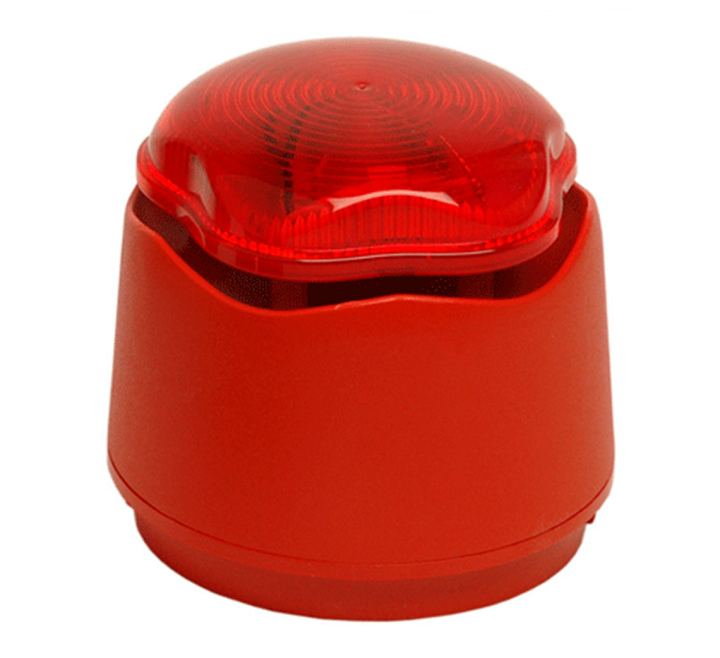

The Vimpex Banshee Excel Lite (958CHL1000) combines the aesthetics and performance of the Excel Sounder with a bright but low-current LED Beacon (CHL model).
The sounder is fitted with a professional capsule driven horn and comes with 32 user-selectable tones incorporating low frequencies, high frequencies, European, American and Australian norms and all industry-standard frequency patterns.
Manufactured in a red flame retardant polymer, the units are available in a choice of base colours and up to 5 different lens colours, making it suitable for a range of fire and security dual notification applications as well as DDA-compliant installations. All models use the push and twist bayonet fitting BansheeMT base, this version is supplied with a standard depth mounting base.
Tested and approved to EN 54 Part 3, the Banshee Excel Lite™ boasts leading acoustics, aesthetically pleasing design and low power consumption. The units are designed for ease of installation and are complemented by a wide selection of accessories to suit all applications.
Key Features of the 958CHL1000 |
|---|
|
> Red body with red lens
> Standard IP45 mounting base > Bright low-current LED beacon > Sounder has 32 user-selectable tones - industry standard compatible > Very low current consumption > EN 54-3 tested and fully approved in accordance with CPR > LPCB approved > Easy to install with side and rear cable entry > Robust 'two in two out' 2.5 mm2 terminals > Choice of three volume levels > IP45 ingress rating > Uses same bases as BansheeMT - simple push and twist bayonet > Mounting with locking screw > Extensive family of accessories for a wide range of applications > Recyclable |
| Brand | Vimpex |
|---|---|
| Manufacturer Part No. | 958CHL1000 |
| Colour | Red |
FAQ’s for Vimpex Banshee EXCEL LITE Conventional Sounder LED Beacon - Red Body, Red Lens (958CHL1000)
Product Specification for Vimpex Banshee EXCEL LITE Conventional Sounder LED Beacon - Red Body, Red Lens (958CHL1000)
| Operating Voltage (V dc): | 9-30 |
| Operating Voltage EN 54-3 (V dc): | 24 (20 -28) |
| Flash Current Consumption (mA):‡ - @24 V dc - @12 V dc |
|
| Flash Rate (Per Second): |
1 |
| Body Colour: | Red |
| Temperature Range (Deg C): | -20 to +70 (CHL) |
| Volume Control: | High, Medium (-10 d B(A)), Low (-20 d B(A)) |
| Environment Category / IP Rating: | Type A/IP 45 Std Base |
