Vimpex Identifire VID - White Body, Red Lens, Surface Mount (10-1310WSR-S)
- Buy 10 for £24.14 £20.12 each and save 2%
Product Details for Vimpex Identifire VID - White Body, Red Lens, Surface Mount (10-1310WSR-S)

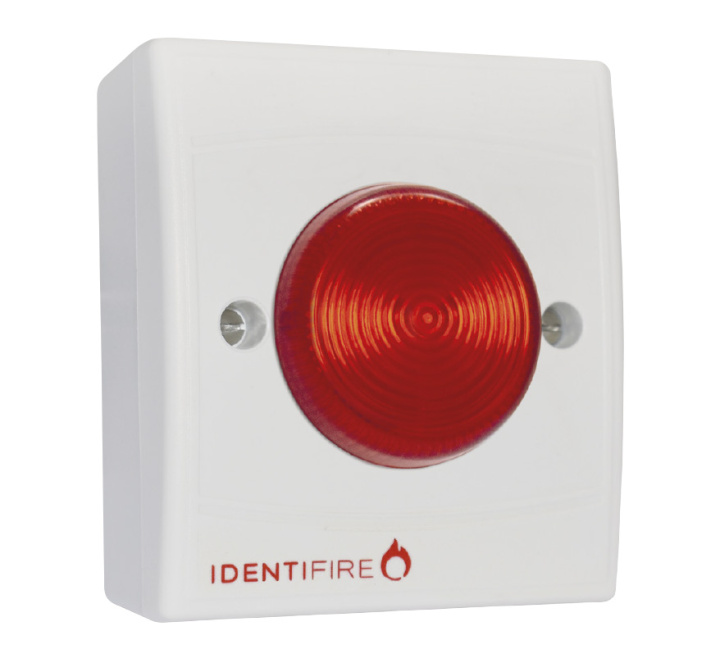

The Vimpex 10-1310WSR-S is a VID with a white body and red lens designed for surface mounting.
The Vimpex Identifire VID is a series of Visual Indication Devices (VIDs) suitable for various applications including fire, security and building control systems. These VIDs serve as ancillary visual alarms and are compatible with both conventional and 2-wire fire systems, as well as general alarm and signalling systems.
Designed to provide seamless integration, the Identifire VIDs can be installed in any recessed single gang box for a flush finish. Alternatively, they can be surface mounted using the Identifire surface box. The VIDs are available in body colours of Red and White, while the strobe colours include Red, White, Amber, Blue, and Green.
Key Features of the 10-1310WSR-S |
|---|
|
> Very bright VID beacon
> Surface mounted > White body and red lens > Features 4 x 20 mm knockouts for surface and glanded entry > Ideal for many general signalling applications > Can be grid mounted for industrial applications > Five different lens colours available |
| Brand | Vimpex |
|---|---|
| Manufacturer Part No. | 10-1310WSR-S |
FAQ’s for Vimpex Identifire VID - White Body, Red Lens, Surface Mount (10-1310WSR-S)
Product Specification for Vimpex Identifire VID - White Body, Red Lens, Surface Mount (10-1310WSR-S)
| Operating Voltage | 20 - 28V dc |
| Current Consumption | 8 mA at 24V dc |
| Weight | 0.06 kg |
| Housing Material | Fire rated ABS |
| Operating Temperature | -5°C to +50°C |
