Vimpex Identifire Tritone Sounder VID - White Body, Red Lens, Flush Mount (10-1110WFR-S)
- Buy 10 for £29.62 £24.68 each and save 2%
Product Details for Vimpex Identifire Tritone Sounder VID - White Body, Red Lens, Flush Mount (10-1110WFR-S)

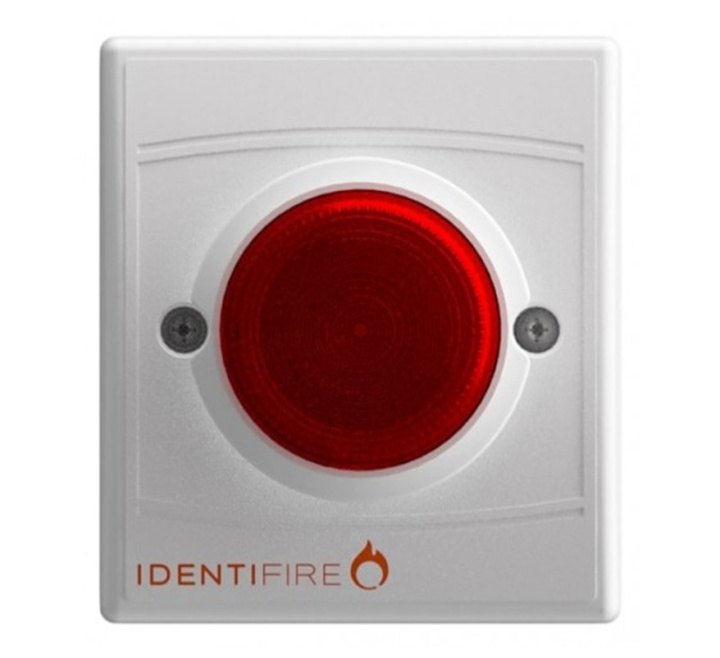

The Vimpex 10-1110WFR-S is a combined tritone sounder and VID with a white body and red lens designed for flush mounting.
The Vimpex Identifire Tritone Sounder VID is a discreet and effective device designed for conventional fire alarm systems. It serves as an ancillary visual alarm, suitable for both conventional and 2-wire fire systems, as well as general alarm and signalling systems. The product is designed to seamlessly fit into any recessed single gang box, offering a flush finish. Alternatively, it can be surface mounted using the Identifire surface box.
The Identifire VID design excels in performance, featuring exceptionally bright LEDs and consistent performance across different lens colours. By utilising the TriTone with VID (visual indicating device), the beacon remains clearly visible and is ideal for locations where a VAD (visual alarm device) is not required.
Key Features of the 10-1110WFR-S |
|---|
|
> Combines sounder and VID beacon in one unit
> Sounder approved by UL to EN 54 Part 3 > 98 dB(A) - 96 dB(A) > 14 mA current consumption > Features 4 x 20mm knockouts for surface and glanded entry > Low profile and subtle design popular with Architects > Manufactured in UK by Vimpex |
| Brand | Vimpex |
|---|---|
| Manufacturer Part No. | 10-1110WFR-S |
FAQ’s for Vimpex Identifire Tritone Sounder VID - White Body, Red Lens, Flush Mount (10-1110WFR-S)
Product Specification for Vimpex Identifire Tritone Sounder VID - White Body, Red Lens, Flush Mount (10-1110WFR-S)
| Selectable Output | High: 92-96 dB(A) / Low: 86-90 dB(A) |
| Current Consumption | 14 mA at 24 V dc |
| Weight | 0.06 kg |
| Operating Temperature | -5°C to +50°C |
| Material | Fire-rated ABS |
| Operating Voltage | 20 - 28 V dc |
